ONE PIECE NAVIGATION TOP CLAMP
ONE PIECE NAVIGATION TOP CLAMP
Couldn't load pickup availability

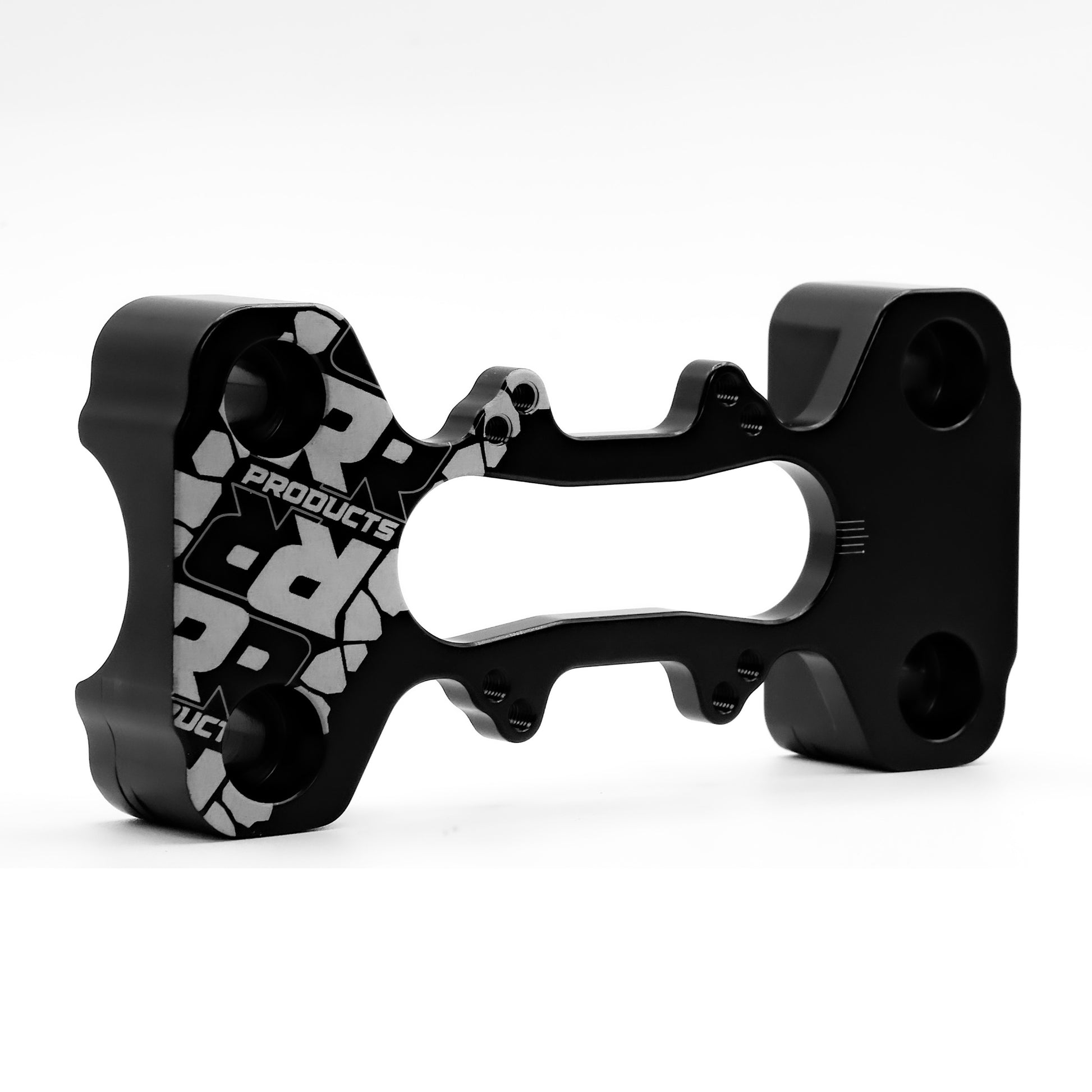

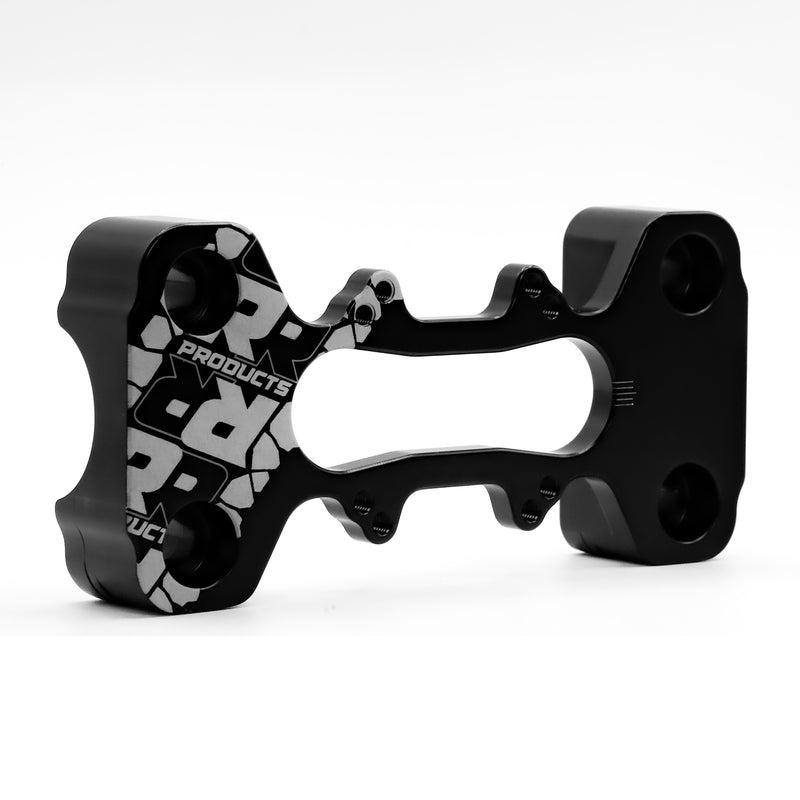

Our unique top clamp design is CNC milled from aluminium 6082 grade billet.
The design provides maximum rigidity across the bars and utilises two sets of M4 threaded screw holes to provide a mount for navigation devices. Most devices such as Garmin, DMD etc use the provided common AMPS pattern and can be attached to this top clamp in both landscape and portrait orientation.
The top clamp is optimal for enduro and trail bikes for a unintrusive navigation solution.
All top clamps are sold in hard anodised black, laser etched and is sold complete with four M8 x 30mm bolts.
|
|

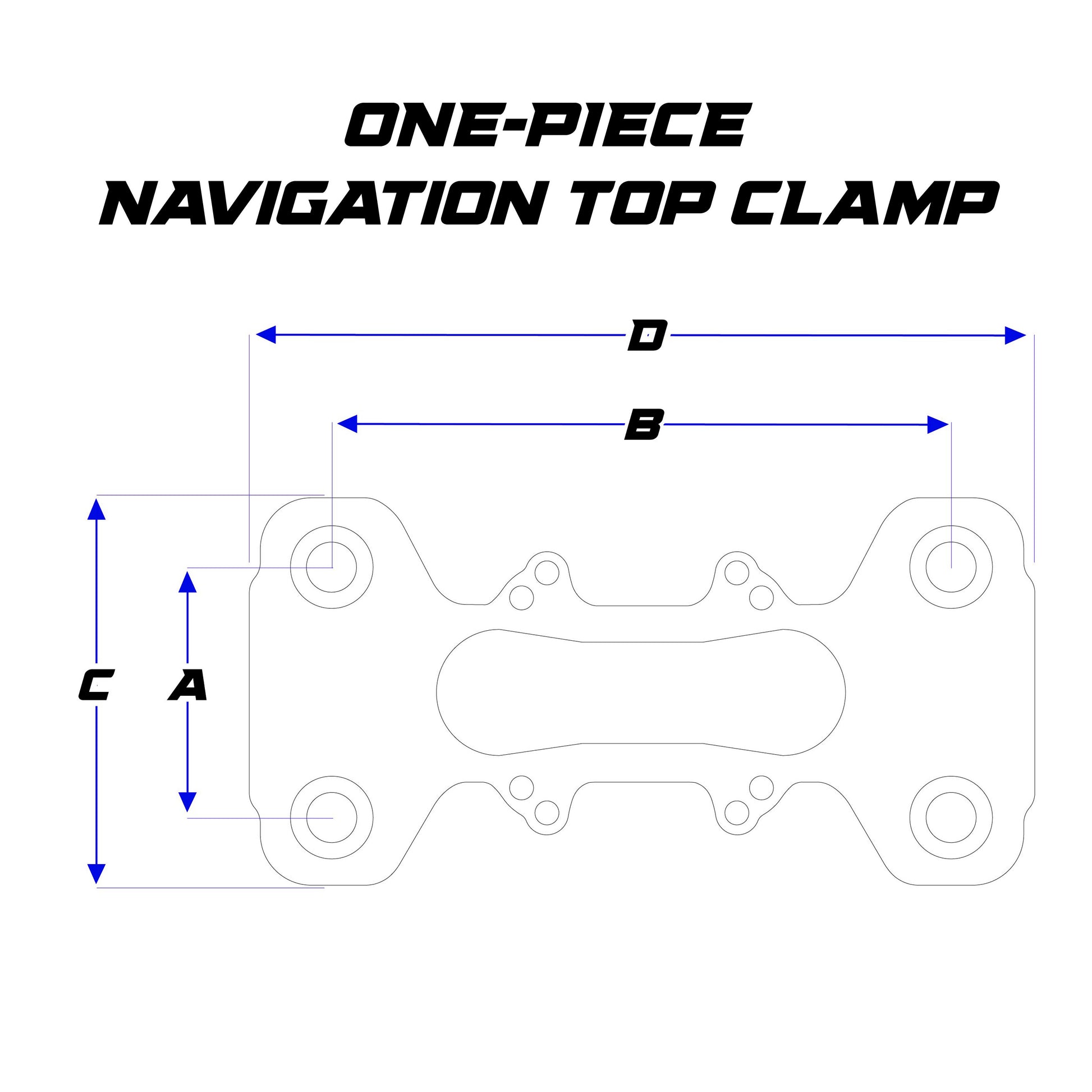

A |
B |
C |
D |
|
Type 1 |
40mm |
100mm |
62mm |
126mm |
|
Type 2 |
38.5mm |
98mm |
56mm |
118mm |
|
Type 3 |
41.5mm |
90mm |
59mm |
123mm |
|
Type 4 |
42mm |
76mm |
60mm |
123.5mm |
|
Type 5 |
38mm |
90mm |
60mm |
124mm |
|
Type 6 |
45mm |
90mm |
60mm |
122mm |
|
Type 7 |
40mm |
90mm |
55mm |
116mm |
|
Type 8 |
40mm |
105mm |
56mm |
127mm |
|
Type 9 |
41mm |
95.5mm |
64mm |
125.25mm |
