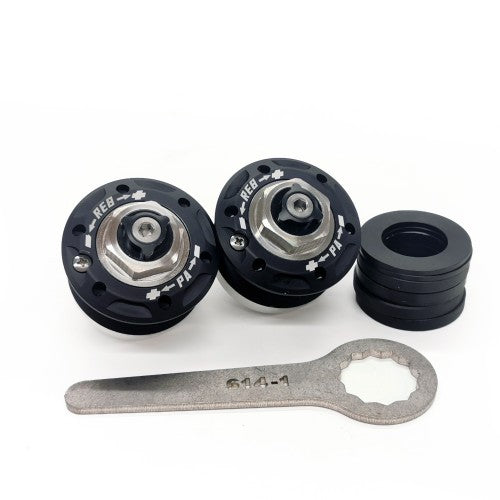

YAMAHA T7 ADJUSTABLE PRELOAD FORK CAPS

Our own design of Preload Adjustable Fork Caps now allow you to add up to 11mm of spring preload to each leg - to help you set your initial static and rider sag, and to further compensate for any additional load requirements.

CNC machined from billet aluminium with stainless steel internals, and finished in anodised black, they directly replace the OEM fork caps and retain the original Rebound damping adjustment in the centre of each Preload adjuster.

The spring Preload is simply adjusted by turning the centre 22mm hex using the compact 'trail' spanner supplied as part of the kit, together with a dedicated pin-spanner to easily install and remove the new caps as required.

These are designed to fit with both the OEM fork internals, or our T7 ADVENTURE Open Cartridge Fork Kit.

Also included is our set of six plastic preload spacers (4 x 5mm and 2 x 2.5mm thickness) for adding up to +12.5mm extra preload initially when setting your static and rider sag.

T7 Fork Preload Caps Fitting Instructions (downloadable PDF)
