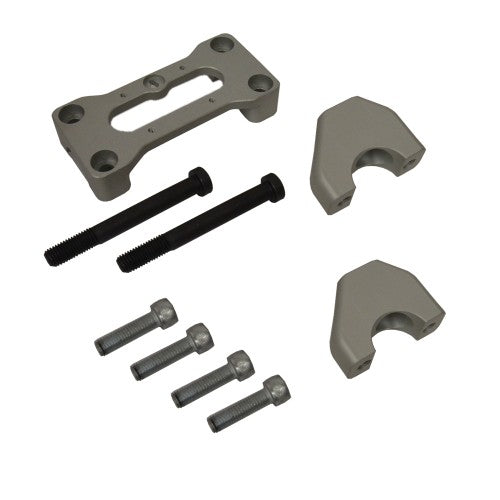

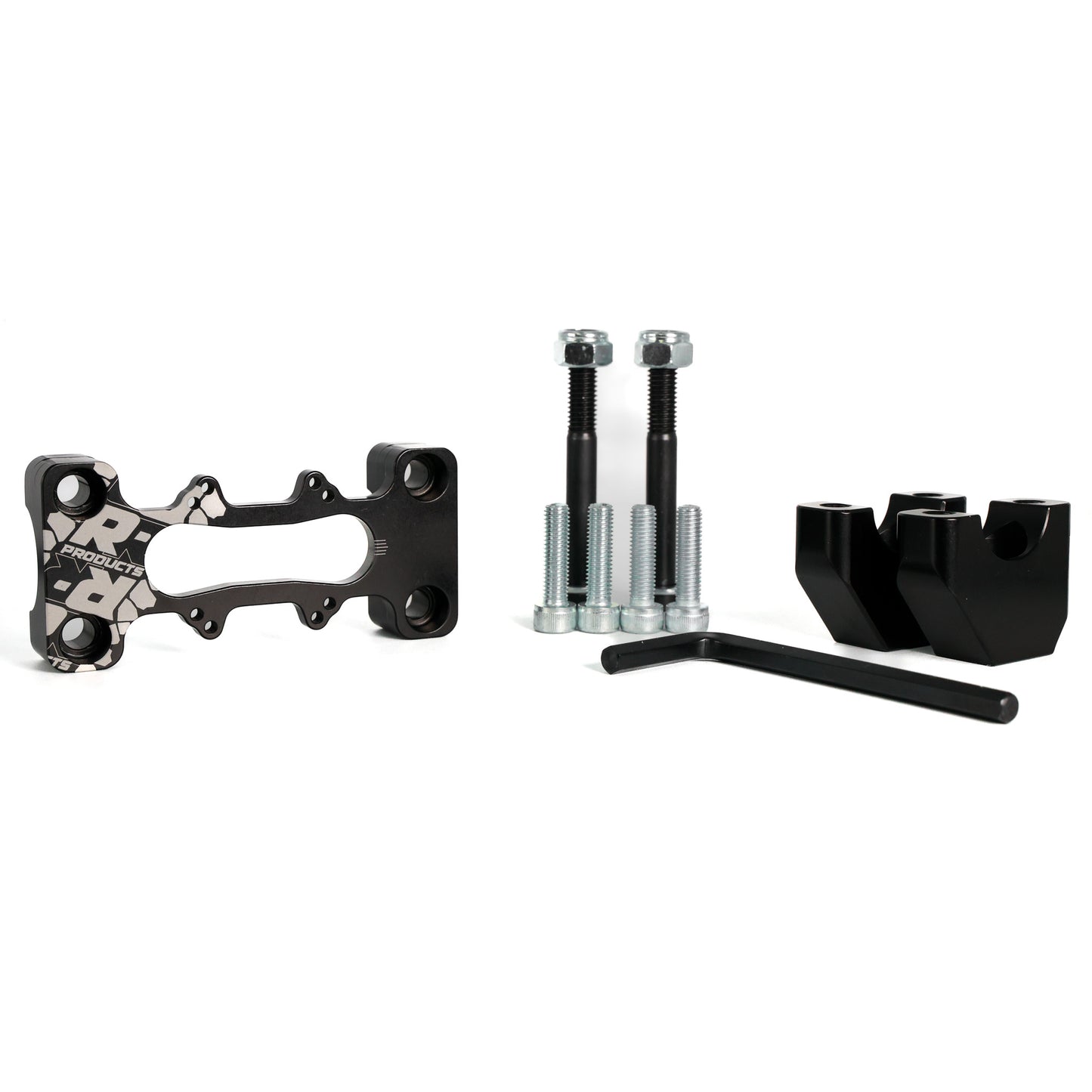

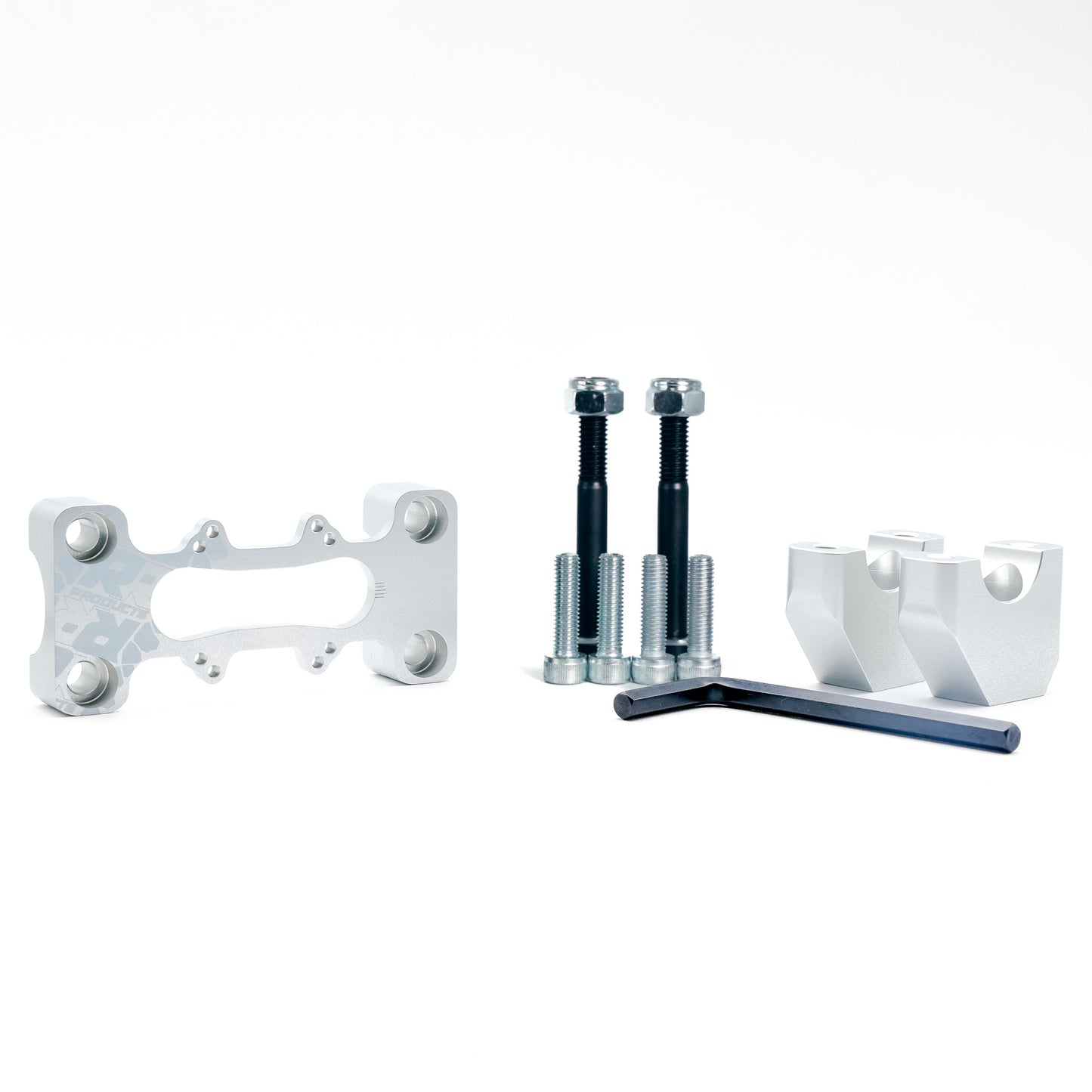

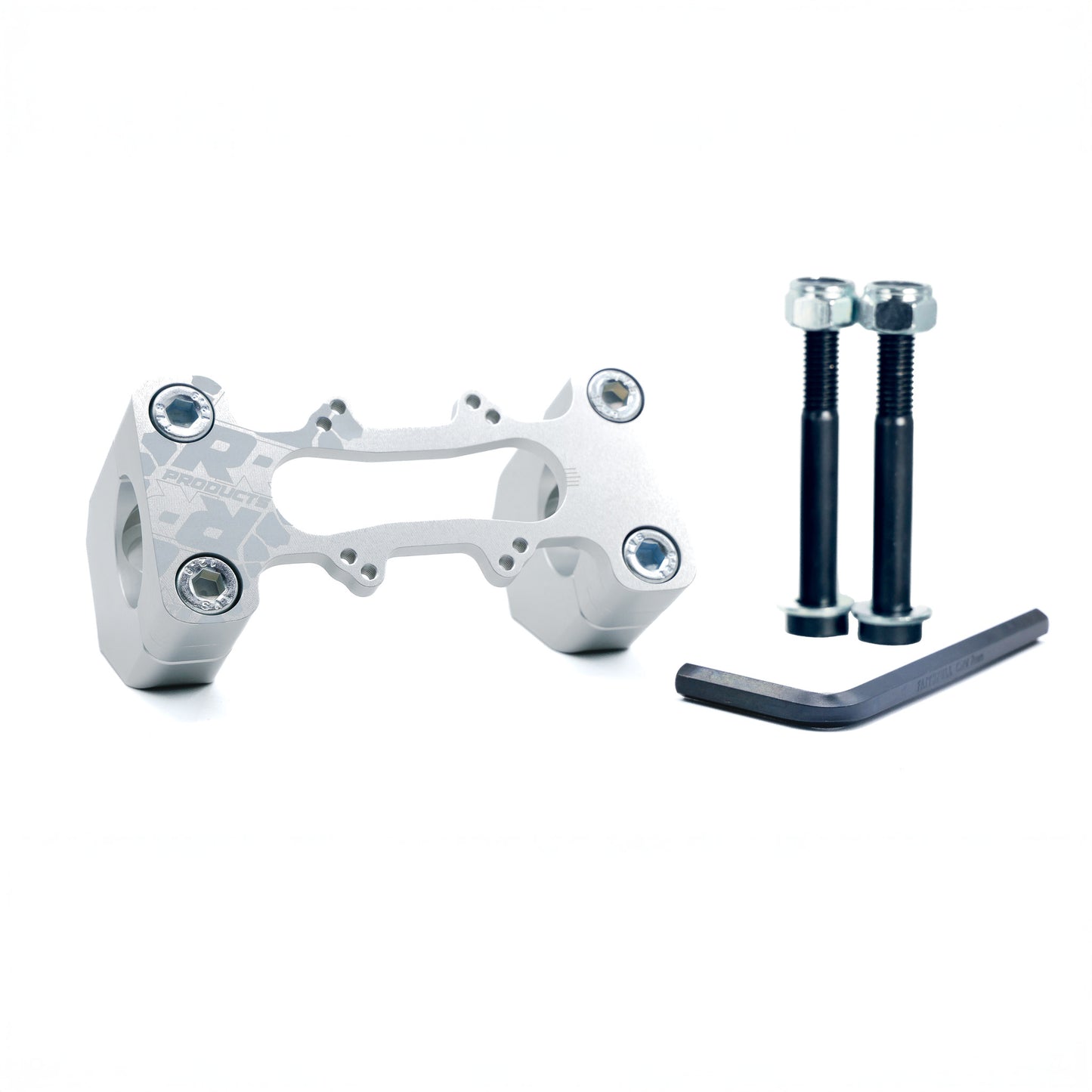

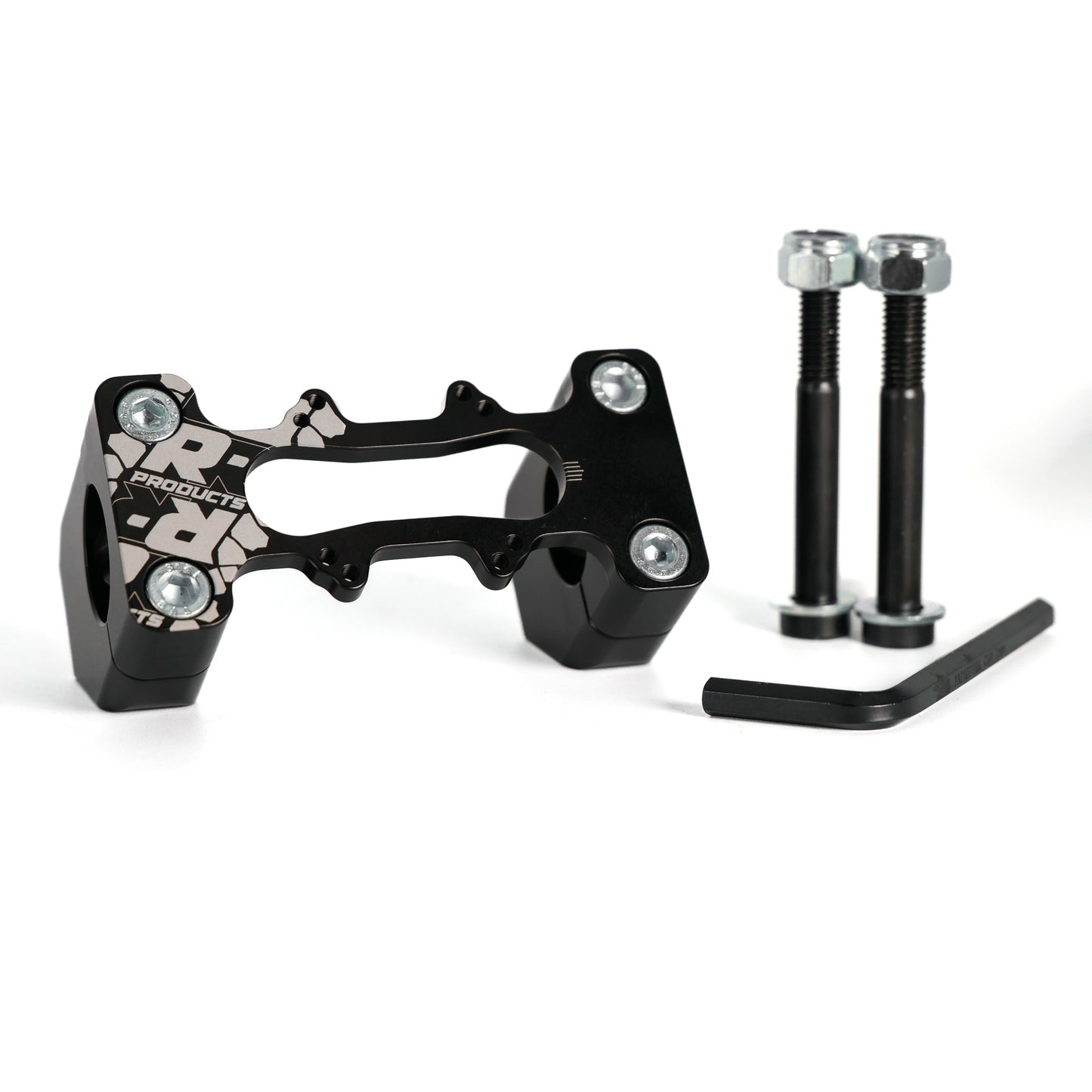

G310GS FAT-BAR RISER KIT

Our Fat-Bar Riser kit mounts to the OEM cast top triple clamp, so you can convert from the OEM handlebar size ((7/8" diameter) to much stronger tapered 'Fat' bars (1-1/8" clamping diameter).

Designed to work particularly well with the Renthal 'RC HIGH' bend (#609) handlebars, the result is a similar overall height as the OEM steel bars, but with a more open cockpit for better control and comfort.

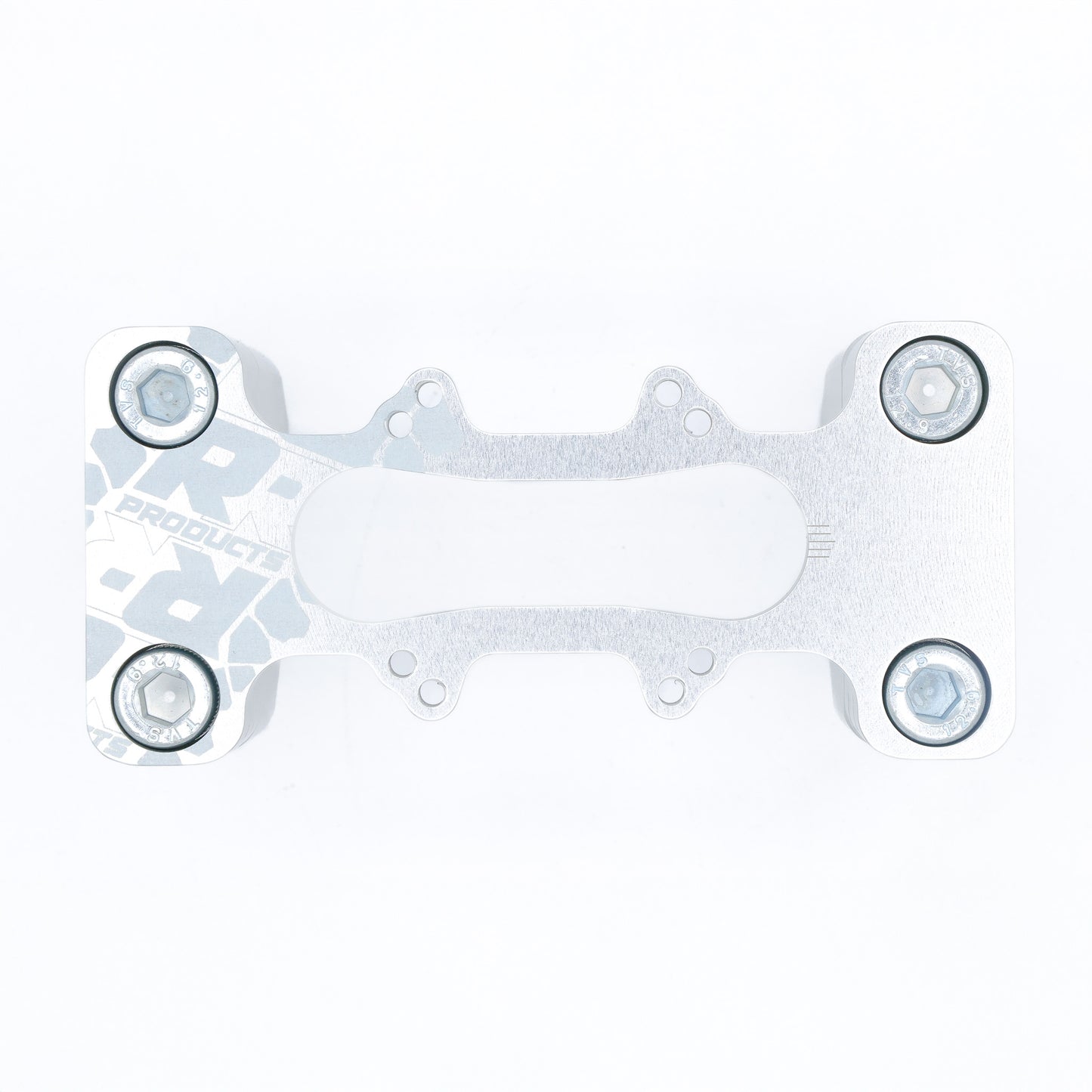

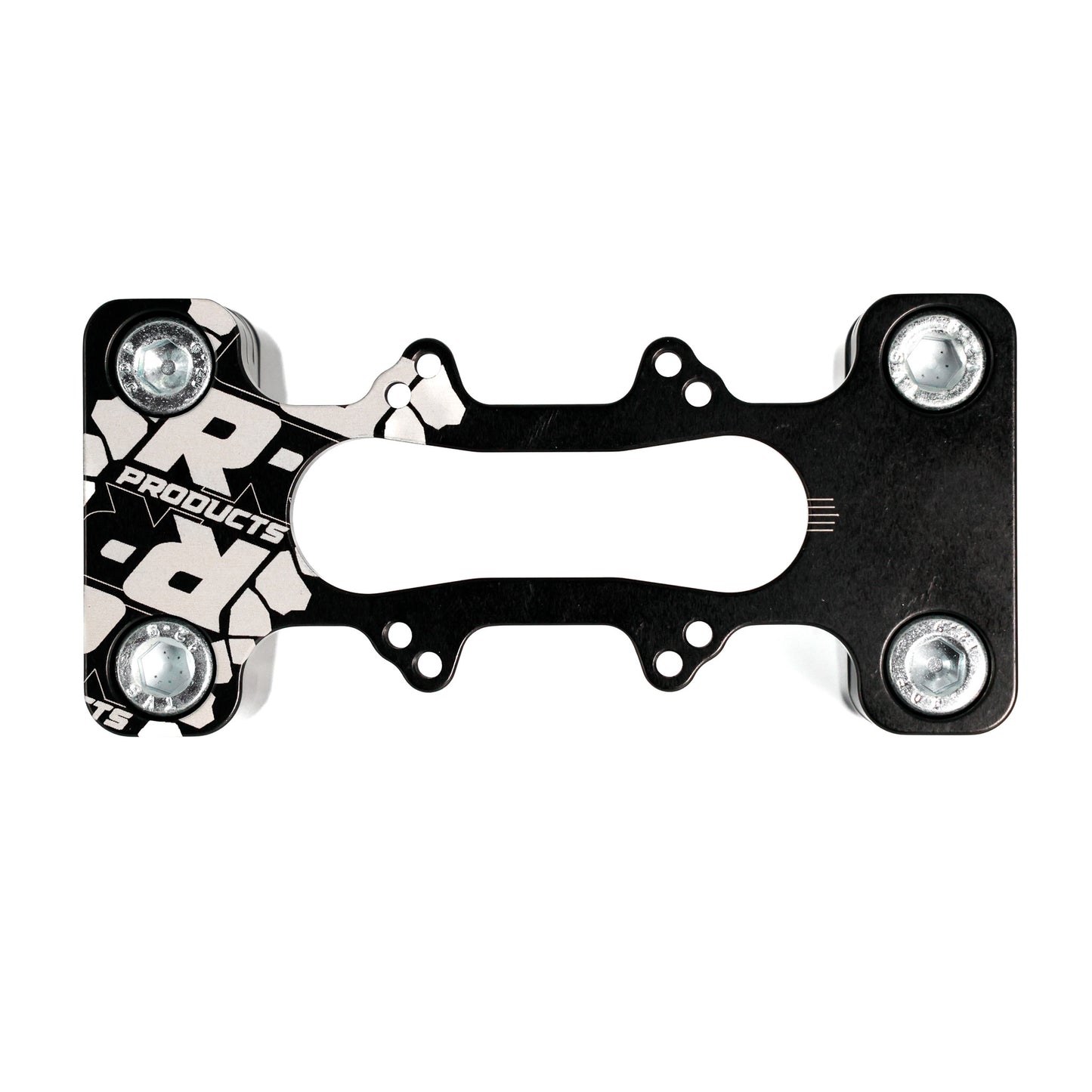

Together with the riser saddles, the one-piece billet Top Clamp offers maximum rigidity, and also incorporates a set of M4 screw holes in the AMPS pattern to either fit a Garmin GPS mount directly, or various RAM 1" ball base mounts for other accessories.

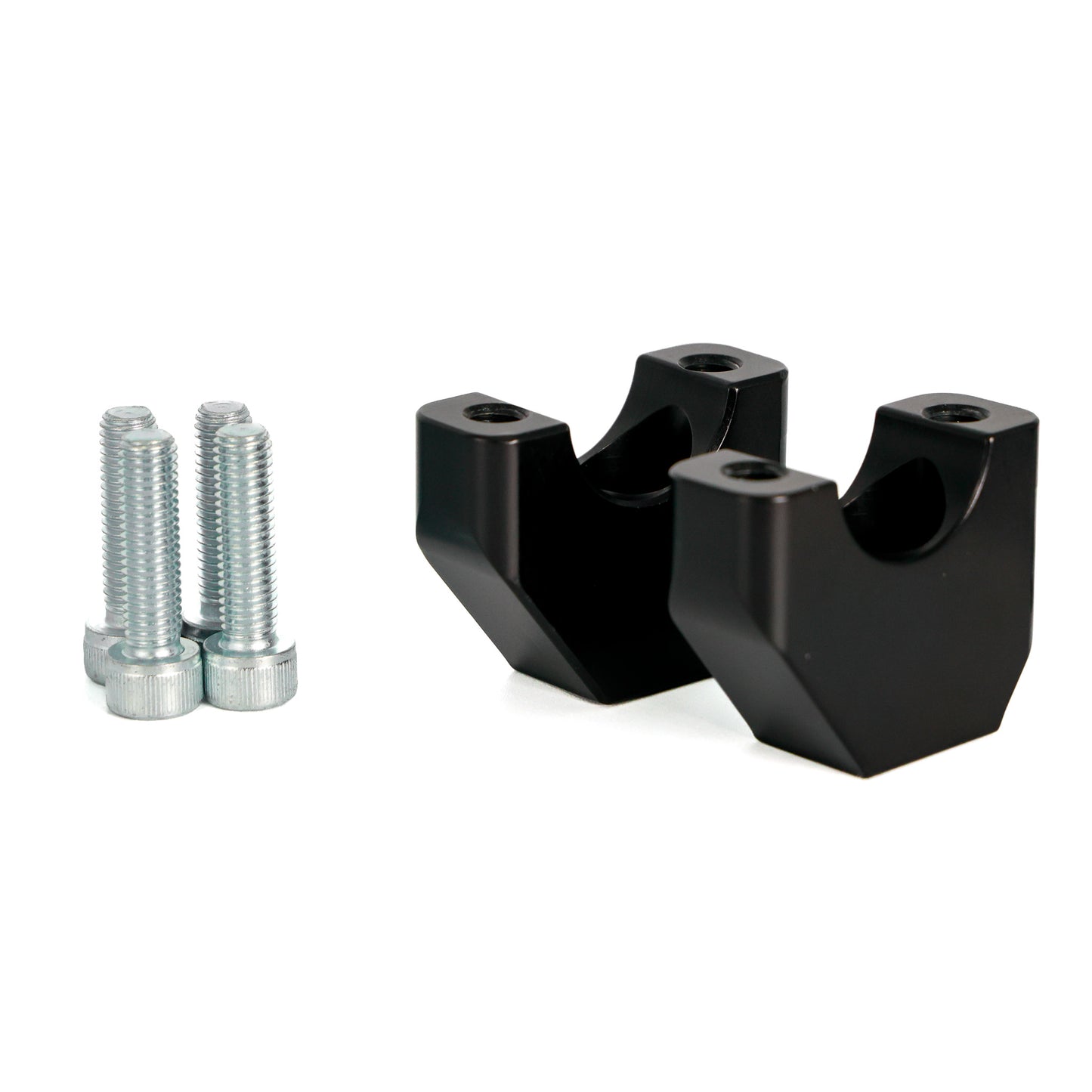

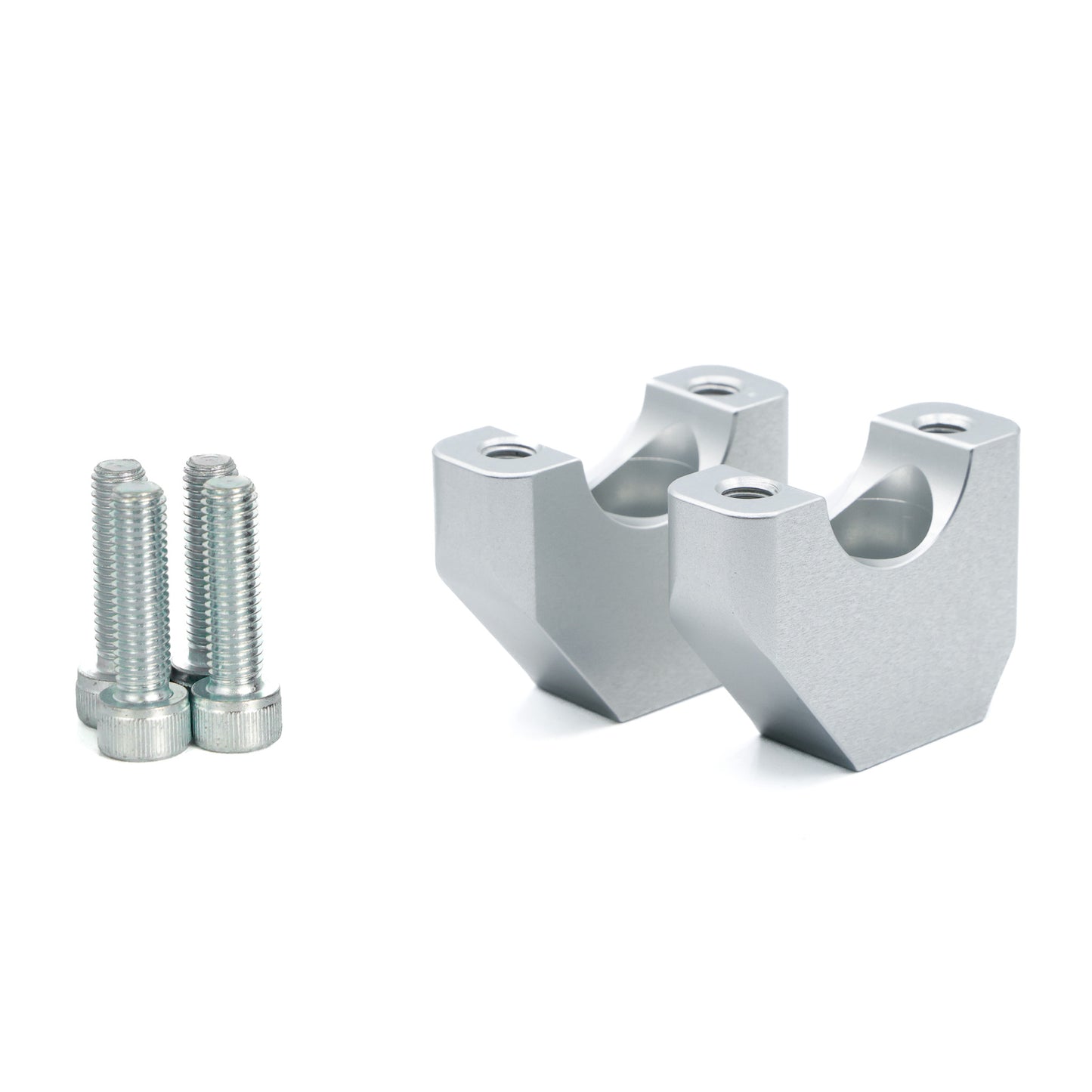

The Lower saddle clamps are reversible, so that the bar position can be moved 10mm forward or back.

It is also possible to raise the bars a further +10 or +20mm using our G310GS Fat-Bar Riser Spacer kit, available separately.

Also available separately is our dedicated 12V/USB Auxiliary Plate which can accept 12V cigarette type and/or USB sockets, ideal for charging electronic devices on the move.

All CNC machined parts are hard anodised natural finish and come complete with new mounting hardware*.

*NOTE: YOU DISCARD THE OEM SCREWS AND NUTS, BUT RE-USE THE OEM THICK WASHERS, TOP AND BOTTOM.

Both M8 screws & M10 bolts to be tightened to 19Nm
