KTM/Husqvarna/Gas Gas 2025 New Frame Sub Mount Kit

Note. SUB Mount Kit only - SCOTTS Off-Road Steering Stabiliser is available separately.

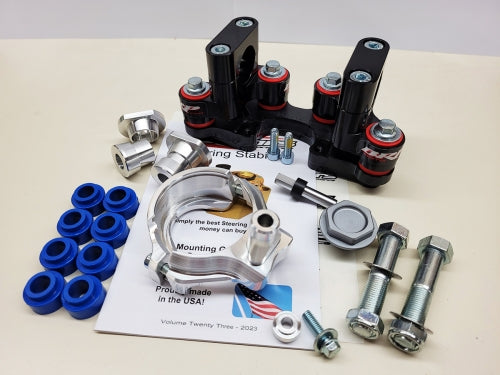

This SUB Mount Kit includes everything except the SCOTTS stabiliser and link arm (available separately), and is designed to fit the OEM triple clamp and tapered handlebars.

On these particular KTM/Husqvarna/Gas Gas models, the OEM rubber bar cones are very soft and are susceptible to distortion in the event of a crash. With this riser kit, those stock rubber cones are replaced with aluminium spacers, and the vibration damping is then provided by our own Rubber mounted SUB mount, which is more effective.

This SUB mount kit will raise the bars 24mm in height and keeps them in Position 2, which will be 7mm further forward front to back as the stock bar mounting.

The new design frame bracket consists of three parts. on most models, installation is done without removing the top triple clamp. Models equipped with a factory steering lock will require the locking device to be removed as it will not clear the damper mounting components. Removal of the steering lock does require the triple clamp to be taken off and then re-installed. Step by step pictured instructions are included along with all the necessary hardware.

Both MEDIUM and SOFT compound bushings are provided for individual preference

SCOTTS P# DM-SUB-6125-01R

Note. This mount generally fits all 2024-on KTM 250/300/350/450 & 500  SX/SxF (inc Factory Edition)/XC/XcF/Xcf-W/XcWTbi (inc CNC & Hard Enduro) Exc-F & Six Days models, plus Husqvarna & Gas Gas models with the newer frame and solid top triple clamp where the bar riser bolts screw into threaded rubber cones in the top triple clamp.

IF IN DOUBT ABOUT MODEL SELECTION, PLEASE CHECK SCOTTS' DATABASE ON THEIR WEBSITE: SCOTTS DAMPERS
