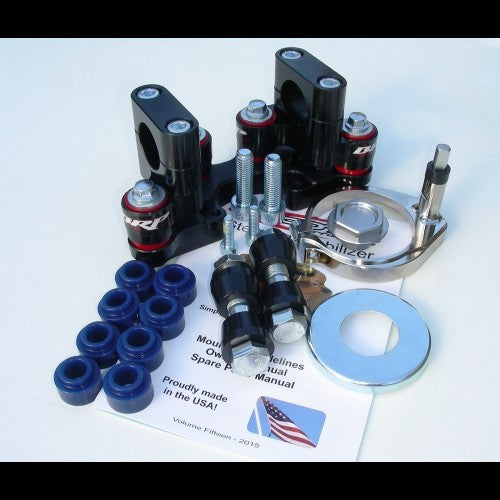

KTM SX/XC (2016-17) SUB MOUNT KIT (RUBBER MOUNT)

Note. SUB Mount Kit only - SCOTTS Off-Road Steering Stabiliser is available separately.

This SUB Mount Kit includes everything except the SCOTTS stabiliser and link arm (available separately), and is designed to fit the OEM triple clamp and tapered handlebars.

On these particular KTM models, the OEM rubber bar cones are very soft and are susceptible to distortion in the event of a crash. With this riser kit, those stock rubber cones are replaced with aluminium spacers, and the vibration damping is then provided by our own Rubber mounted SUB mount, which is more effective.

This SUB mount kit will raise the bars 24mm in height and keeps them in the same relative position front to back as the stock bar mounting.

Both MEDIUM and SOFT compound bushings are provided for individual preferences.

An hour meter relocation bracket is included for models with these meters fitted.

SCOTTS P# DM-SUB-5926-01R

Note. This mount generally fits all 2016-17 KTM SX/XC models, with the newer frame and solid top triple clamp where the bar riser bolts screw into threaded rubber cones in the top triple clamp.

IF IN DOUBT ABOUT MODEL SELECTION, PLEASE CHECK SCOTTS' DATABASE ON THEIR WEBSITE: SCOTTS DAMPERS
