YAMAHA T7 BILLET BAR RISER & SPACERS

Designed to fit with either the OEM cast top twin clamps, or our one-piece Billet Top Clamp.

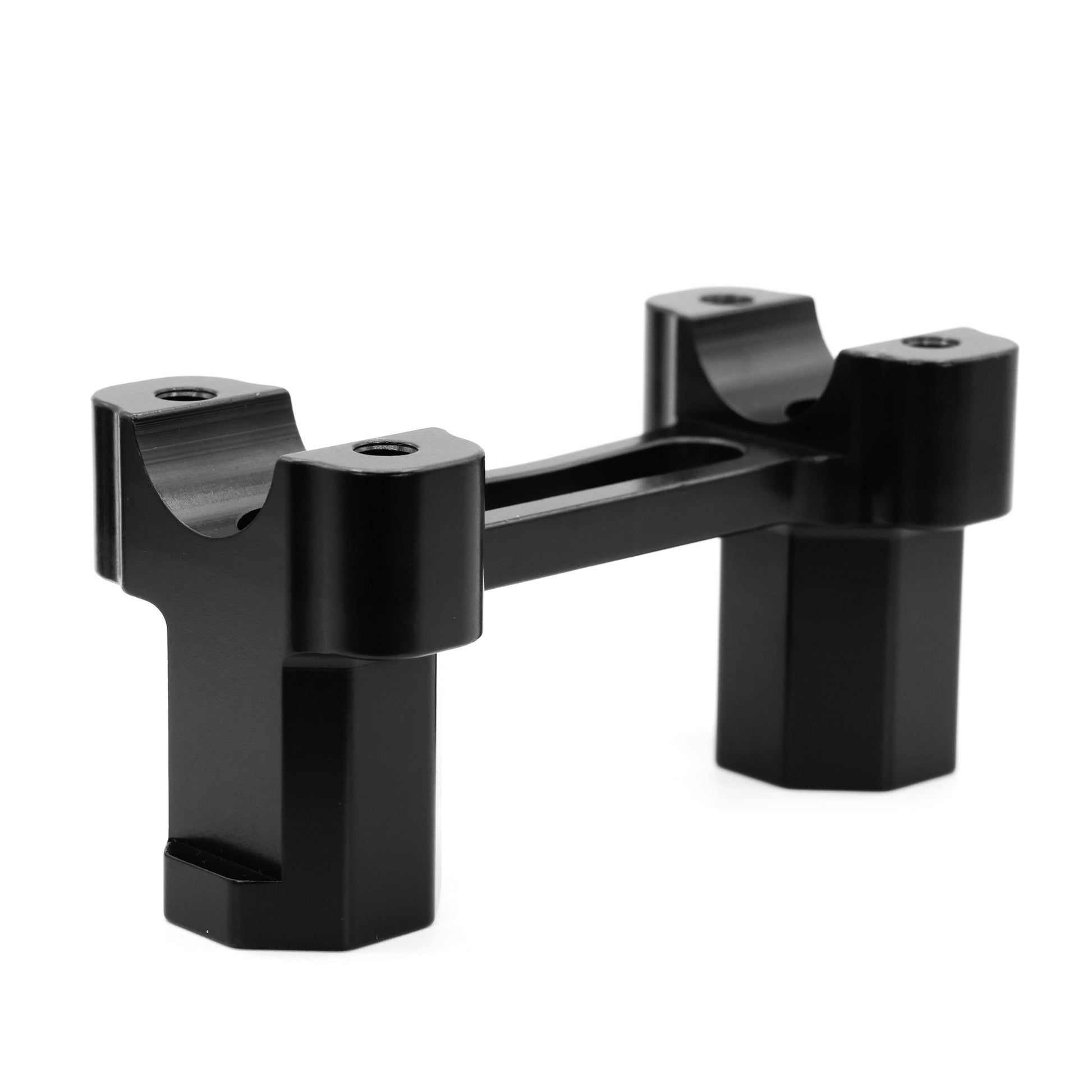

Our own design of Billet aluminium Bar Risers replace the cast aluminium OEM riser, and offer range of different bar heights plus fore-aft positioning to help tailor the cockpit to your personal preference.

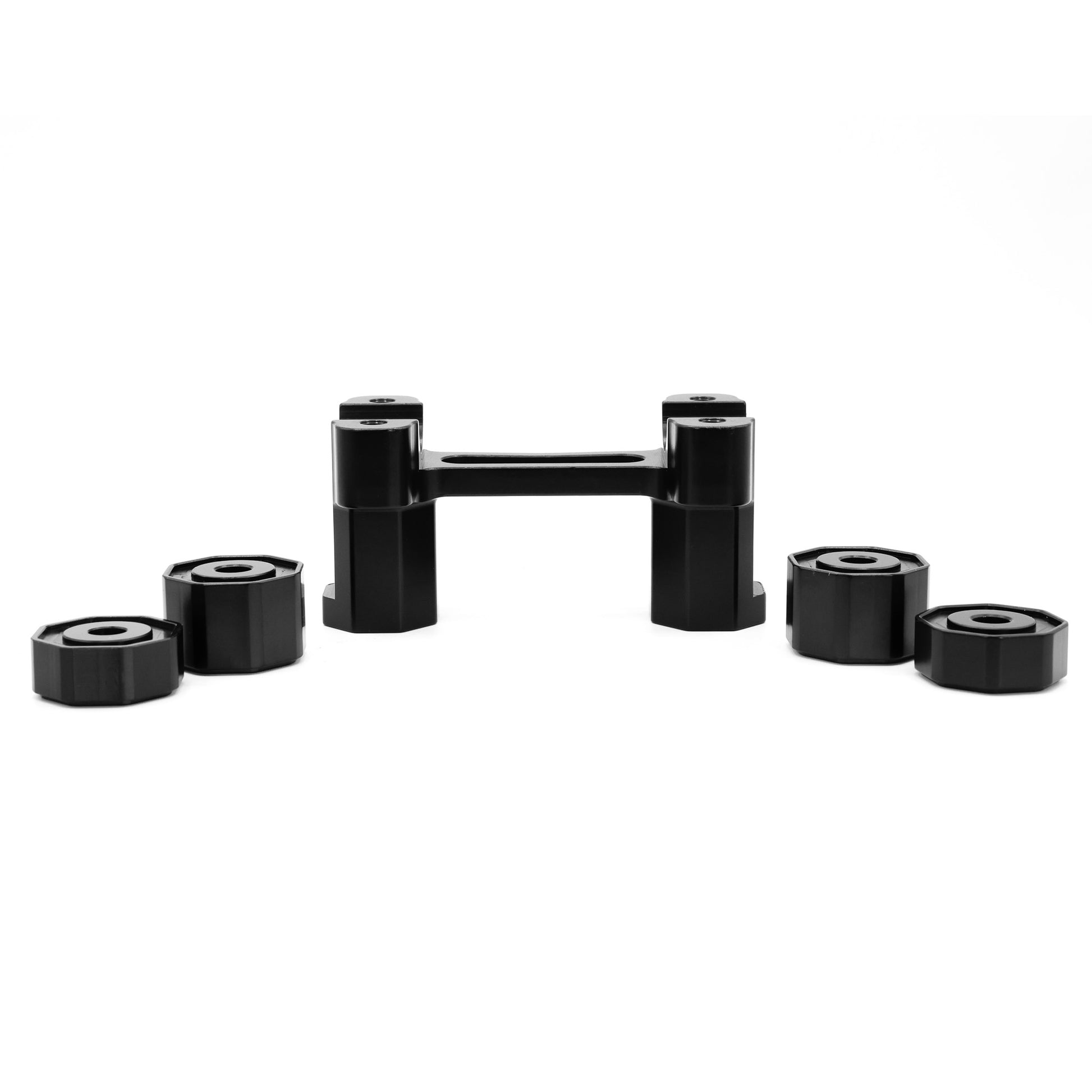

The offset saddles can mounted in either orientation to give the option of 8mm adjustment forward or back. A set of four 15mm and 25mm spacer blocks then allow you to add up to +25mm increase in overall bar height using the hardware supplied.

4 different handlebar heights are available:

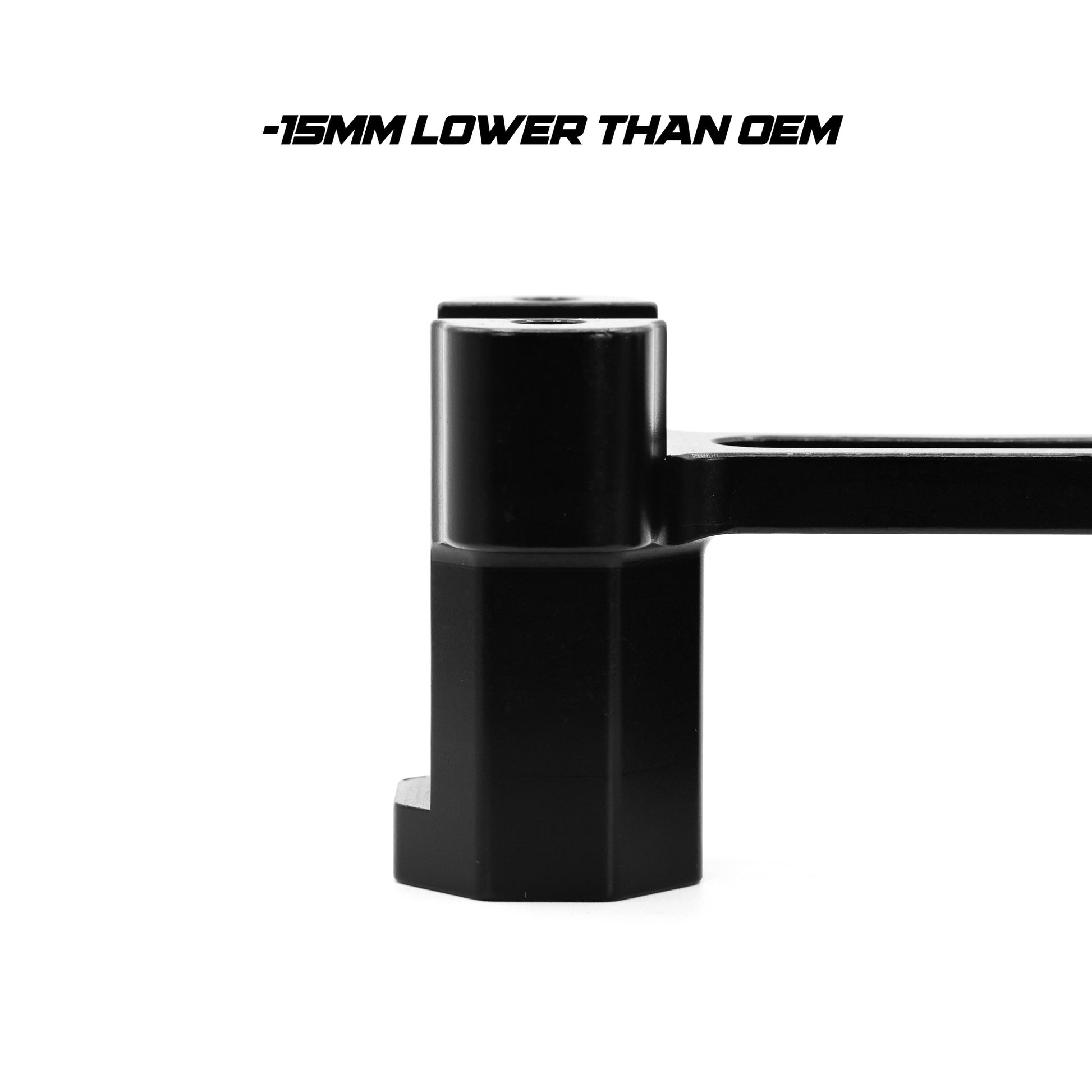

• -15mm lower than OEM (without spacers)

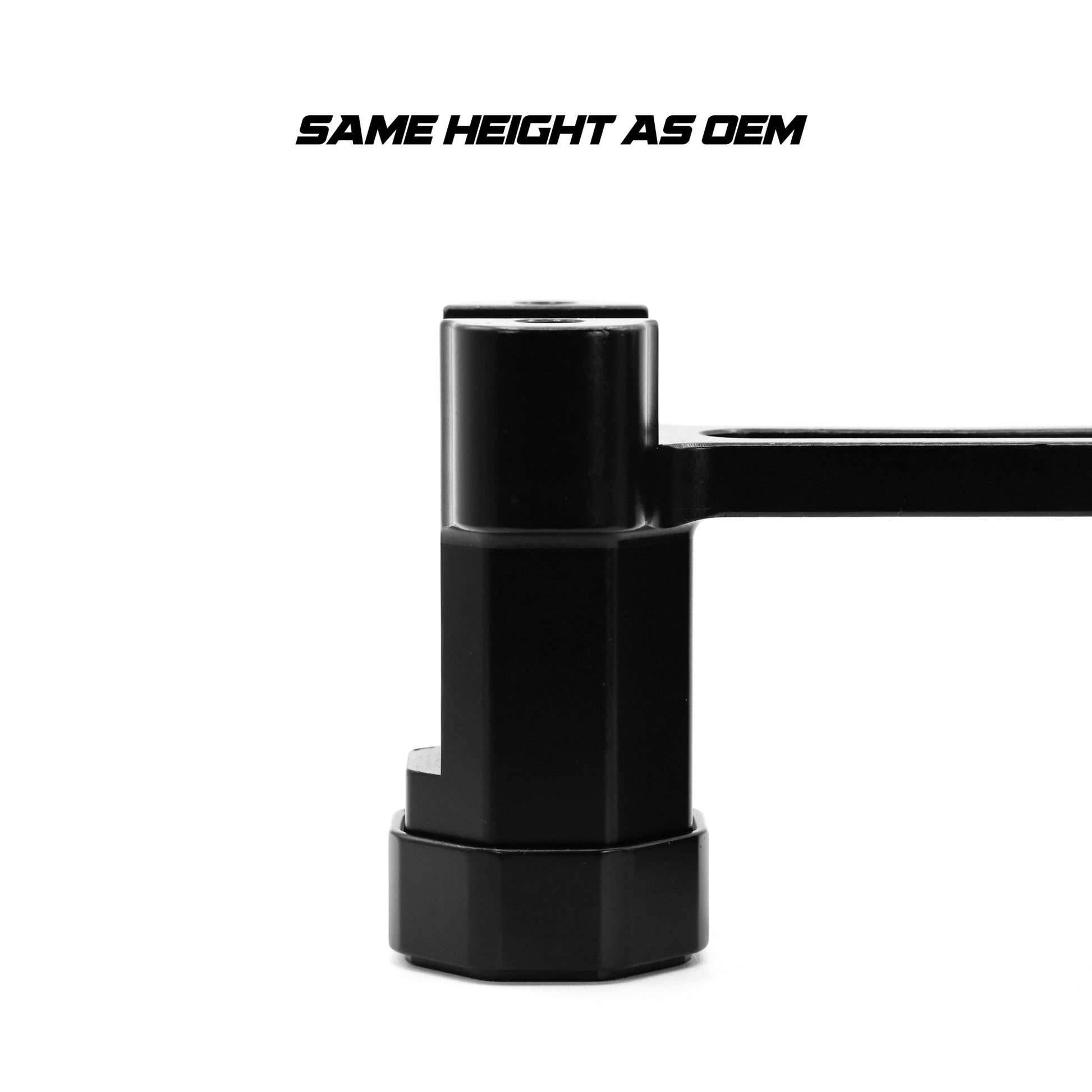

• same as OEM (with the 15mm spacers)

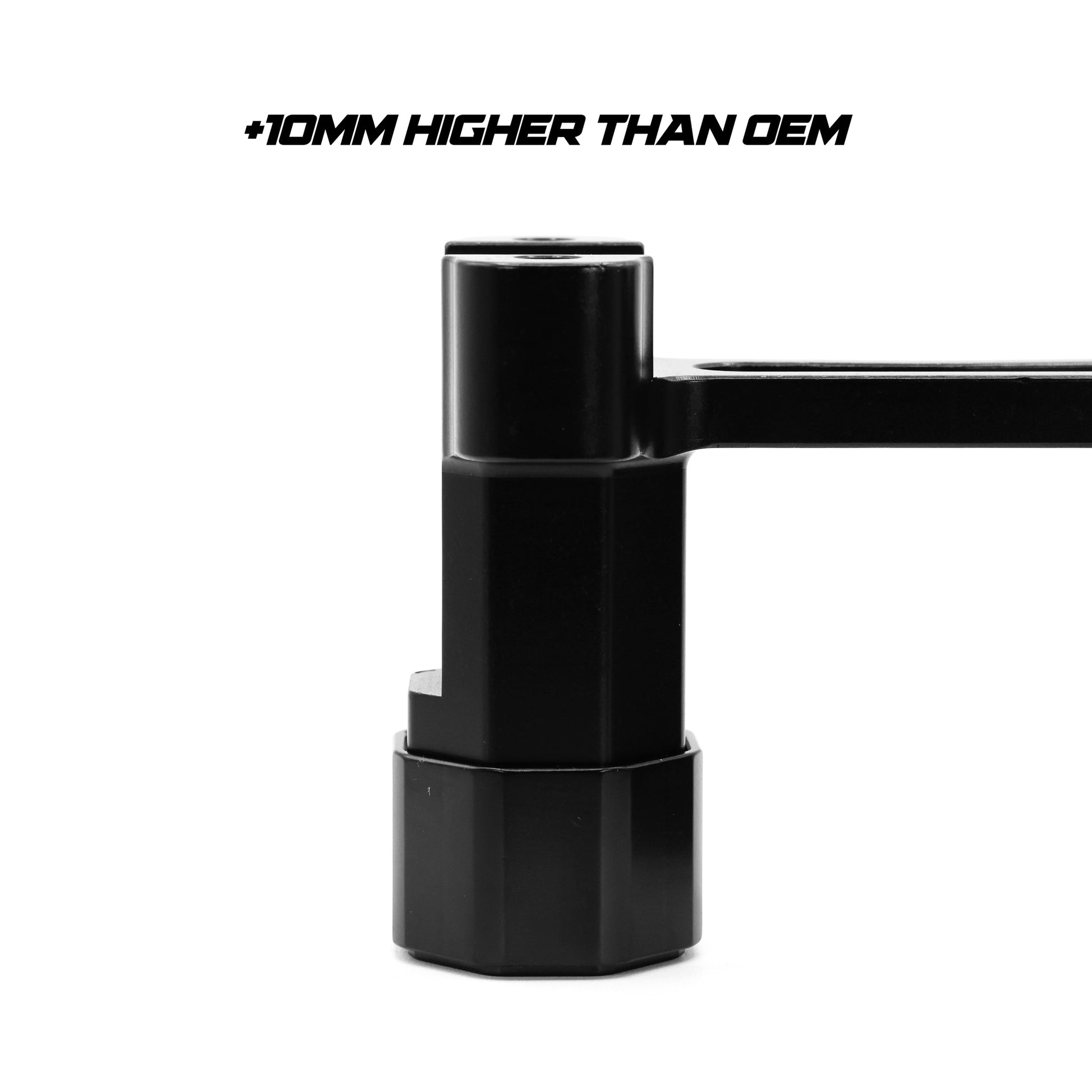

• +10mm higher than OEM (with the 25mm spacers)

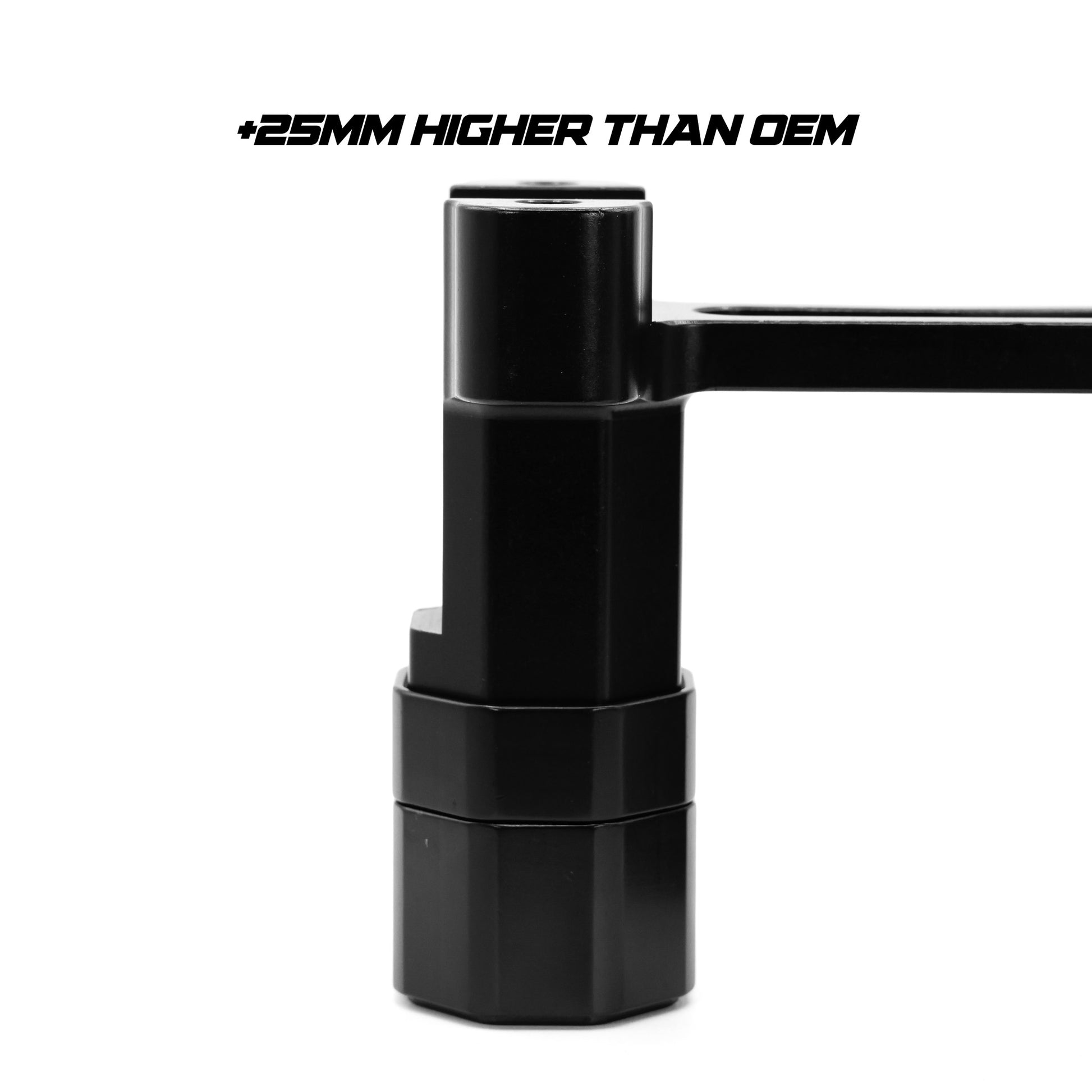

• + 25mm higher than OEM (with both the 15mm and 25mm spacers together)

Note. +25mm is as high as you can go with the stock cables and switchgear wiring.

In addition, our Billet Riser was designed to utilise replaceable M10 mounting bolts (supplied in two lengths, depending on the number of spacers fitted) compared the OEM cast riser which has captive bolts that can bend easily, and cannot be replaced on their own without replacing the whole cast riser.

The risers and spacers are black anodised, while the supped mounting hardware is all bright zinc-plated to minimise corrosion.
