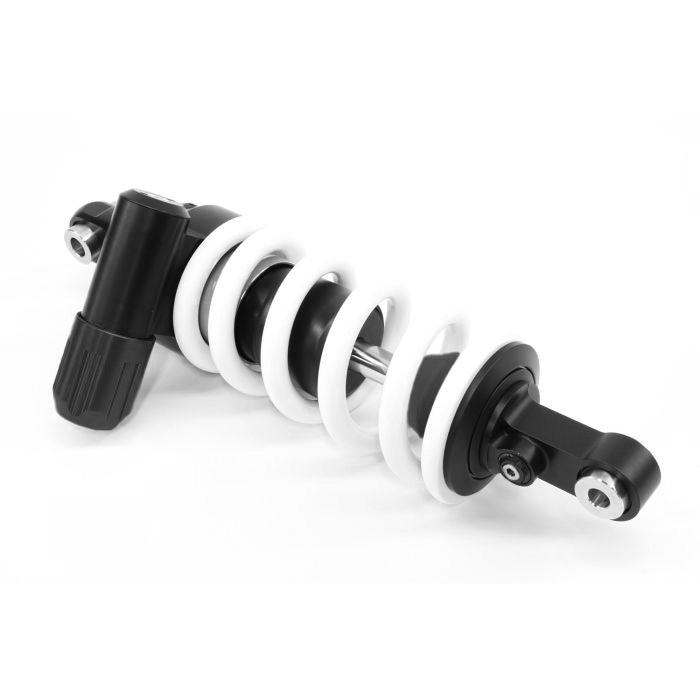

The entry-level ADVENTURE shock is for riders who want improved suspension. Each shock has a damping setting specifically developed for its application, and the spring is selected for the rider’s weight and intended use.

• Emulsion type (oil & gas mixed)
• CNC machined high-quality materials
• Manual, or hydraulic spring preload adjuster

Manufactured exclusively for Rally Raid Products by TracTive Suspension in the Netherlands, we designed our ADVENTURE shock to address all the shortcomings of the OEM standard suspension, while retaining the same overall travel (200mm) and seat-height of the standard specification.

The ADVENTURE shock is available with a wide range of spring rates to more closely match your rider weight and intended load and riding style requirements, and includes our own Hydraulic Preload Adjuster to give a further +/- 10mm range to quickly allow you to set your initial [rider] sag, and to then compensate for any addition luggage or passenger loads.

ADVENTURE Shock specification in more detail

The shock body itself utilises a large diameter (46mm) piston assembly for primary damping control, together with a second PDS piston/damping circuit to offer more accurate control and cushioning during the final portion of the suspension stroke.

The internal components are all precision CNC machined from Cro-Mo and Stainless Steel, with the shock featuring a 16mm diameter shaft to improve overall strength & rigidity and ensure consistently smooth operation and durability.

Our ADVENTURE Shock features

•  200mm rear wheel travel-same as OEM.

•  Large diameter (46mm) shock body and piston with PDS valving.

•  16mm diameter shock shaft.

•  Dedicated Compression/Rebound damping adjuster easily accessed at the base of the shock.

• Hydraulic Preload Adjuster option (available from drop-down) offers +/-10mm further adjustment for easy setting your initial sag and to quickly compensate for any additional loads.

The ADVENTURE shock comes ready assembled with the HPA (if chosen) and your choice of spring to suit your rider weight & luggage/passenger loads.

This shock is the choice for replacing your shock with a high end aftermarket product. It is especially suitable for when you do not need to change your damping in between tracks or when you are not looking for the optimum in damping control. This shock has a large damping adjustment range. Using the rebound adjuster, the damping can be adjusted with approximately 18 clicks. Every clicker adjustment brings a noticeable change in damping level. The rebound adjuster affects rebound damping and compression damping in a natural balance. The spring preload can additionally be adapted by using the tool supplied.

This shock has a mixture of nitrogen and oil inside. It has less internal friction than shocks with separation pistons, but also has a damping that is relatively less stable. These characteristics make this shock a very good and "value for money" option when driving on tarmac roads. The shock absorber is equipped with a so-called PDSII system against bottoming out. It has a 2nd damping piston mounted on top of the main damping piston. At the end of the ingoing shock absorber stroke, this 2nd damping piston enters a cup and creates an extra damping level. This happens only during the ingoing movement and only at high ingoing speeds. It effectivily is a cushion that absorbs the high ingoing energy and prevents a hard bottoming of the shock absorber. This leads to increased comfort and safety. At the same time the bottoming impacts on the motorbike frame are minimised, leading to less bent bolts and damages.

The robustness of the preload adjuster facilitates rides in the harshest conditions and supports the highest loads without any issues. The large preload adjustment range of 15 mm (unless otherwise specified) is typically double the stock range and a lot more than almost all aftermarket brands. It allows for load compensation and for optimising the balance in the motorcycle. The PA can be finely adjusted with more than 60 clicks.

A choice of 5 different spring rates are available (select from the menu above) to more closely match your weight and riding style requirements:


Spring rate guidelines:

We suggest you weigh yourself wearing your typical riding apparel (including boots and helmet), and apply that to the following spring rate chart - depending on whether you plan to ride mainly solo, or with an amount of luggage and/or a passenger.

Note that our built-in Hydraulic Preload Adjuster has enough range to typically compensate for an additional 60Kg of load if required.

Suggested Spring Rate (based on rider weight):


85 N/mm - typical Rider weight of 70kg (very light rider)

90 N/mm - Rider weight of 70-85Kg (including light luggage up to 15kg)

95 N/mm - Rider weight of 85-100Kg  (including light luggage up to 15kg)

100 N/mm - Rider weight of 100-115kgs (including light luggage up to 15kg)

110 N/mm - Rider weight above 115kgs  (including passenger & light luggage up to 15kg, or for the solo overland rider with a more heavy luggage load).


Convert lbs to Kg here

Note. Our ADVENTURE shock features the same 200mm travel as the OEM shock, specifically so that the ground clearance and seat-height remain the same as standard.
