RALLY RAID SUSPENSION
G310GS 'LOW' SHOCK (ADJUSTABLE)
G310GS 'LOW' SHOCK (ADJUSTABLE)
£392.00 GBP excl VAT
£0.00 excl VAT
£392.00 GBP excl VAT
Couldn't load pickup availability
Need help or advice before ordering ? Check our FAQ or drop us a message below.
View full details
- OVERVIEW
- TECHNICAL SPEC
- SPRING RATES
- IMPORTANT INFO
- SUPPORT & FITTING
LOW Rear Shock - LOW SEAT HEIGHT/shorter travel rear suspension upgrade.
High quality TracTive aluminium big-bore rear shock, with adjustable damping and a choice of spring rates to suit a wide range of rider/luggage weights and applications.
The adjustable shock body is unique to this LOW model shock, and allows the seat height to be lowered from -10mm to -35mm compared to standard.
The aluminium-bodied TracTive shock gives a weight saving of over 1.5Kg compared to OEM shock.
note. This is the REAR SHOCK ONLY, if you also require the LEVEL 1 (standard travel) fork upgrade kit this can be ordered separately.
LOW Shock specifications
Shock body features an easily accessible combined damping adjuster (at a fixed ratio of 80% Rebound and 20% Compression), with 24 clicks of adjustment.
Choice of four spring rates at the point of purchase: 110 N/mm, 120 N/mm (standard), 130 N/mm and 140 N/mm.

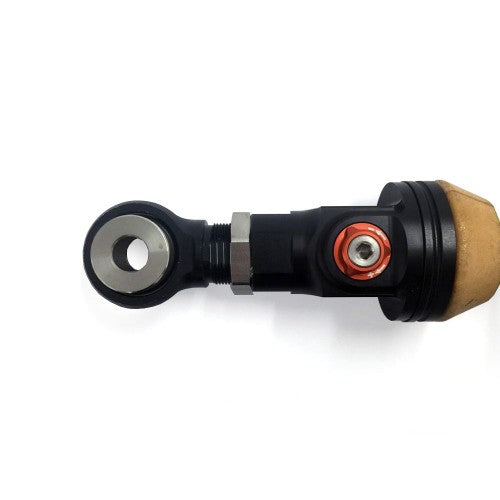

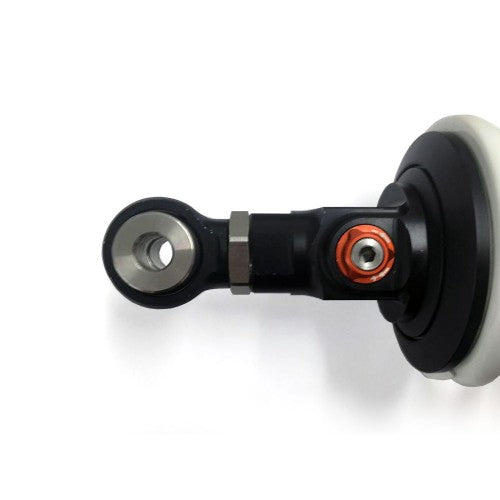

Also fitted is Tractive Suspension's own unique length adjuster, incorporated into the lower shock mounting. This allows the shock length to be reduced by up to 8mm, by undoing the locknut and winding in the lower mount.
This 8mm adjustment at the shock equates to a reduction of between -10mm and -35mm on the standard seat height, compared to the OEM shock - allowing the rider to personalise the ride height to suit conditions. No need for any internal shock modifications, or after-market linkage parts to reduce ride height.
The aluminium-bodied TracTive Shock gives a weight saving of over 1.5Kg compared to OEM shock.
All Rally Raid Products / TracTive rear shocks are fully serviceable/rebuildable and come with a 2-year Manufacturer warranty.
G310GS Spring Rate guidelines:
| Rider weight (inc. clothing and light luggage up to 15Kg) = Total up to 85Kgs | 110 N/mm (Softer Spring) |
| Rider weight (inc. clothing and light luggage up to 15Kg) = Total 85-105Kgs | 120 N/mm (Standard Spring) |
| Rider weight (inc. clothing and light luggage up to 15Kg) = Total 105-120Kgs | 130 N/mm (Harder Spring) |
Above 120kgs total rider & luggage weight select 140Nm spring, this is the maximum weight spring offered.
IT IS NOT POSSIBLE TO FIT THE REMOTE HYDRAULIC PRELOAD ADJUSTER TO THIS LOW VERSION OF THE TRACTIVE SHOCK.
G310GS LOW Shock Fitting Instructions (downloadable PDF)
-
