This high quality TWIN PISTON PDS rear shock, has been designed specifically to increase all-round performance and adjustability for those riders looking to enhance the all-road and off-road ability of their KTM 330 Adventure R and Enduro, when typically used in an all-terrain 'adventure' touring role.

Manufactured exclusively for Rally Raid Products by TracTive Suspension in the Netherlands, we designed our ADVENTURE shock to address all the shortcomings of the OEM standard suspension, while retaining the same overall travel (230mm) and seat-height of the standard specification.

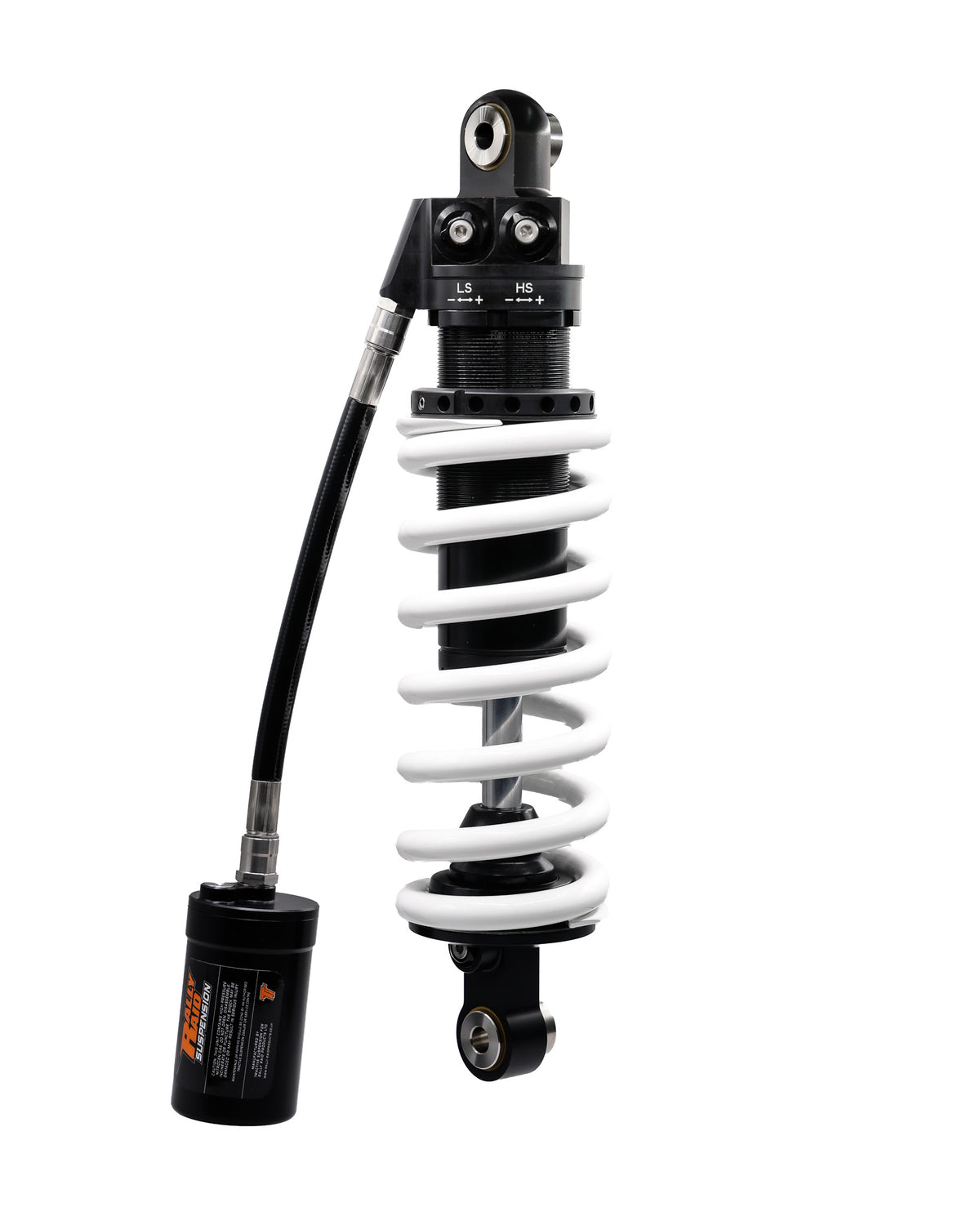

The piggy-back reservoir design features individual adjustment of the High and Low speed Compression damping together with a separate Rebound adjuster easily accessed at the base of the shock body.

The LEVEL 1 EXTREME shock is available with a wide range of spring rates to more closely match your rider weight and intended load and riding style requirements, and includes a manual preload adjuster to allow you to set your initial [rider] sag, and to then compensate for any addition luggage or passenger loads.

KTM 390 Level 1 Extreme Shock specification in more detail

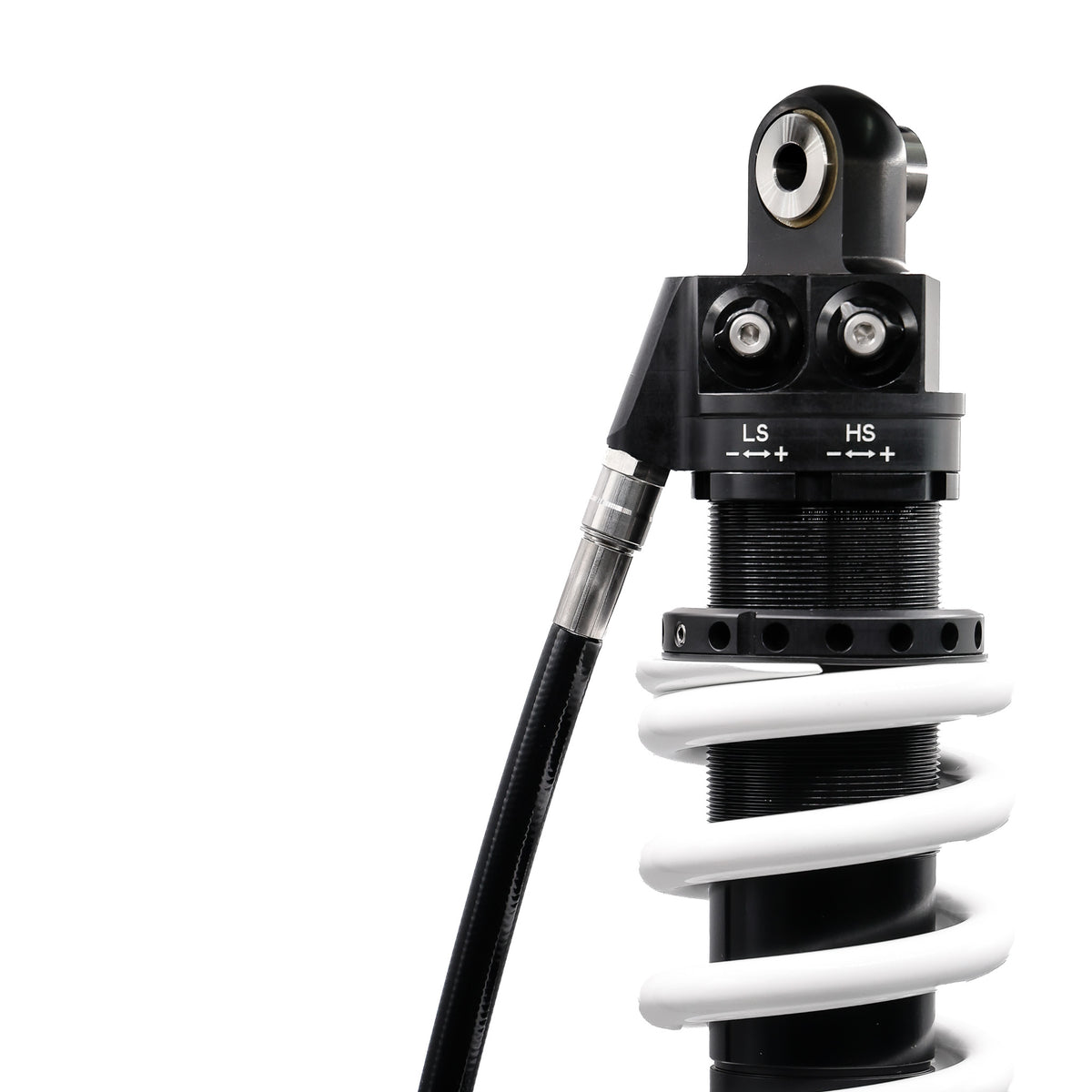

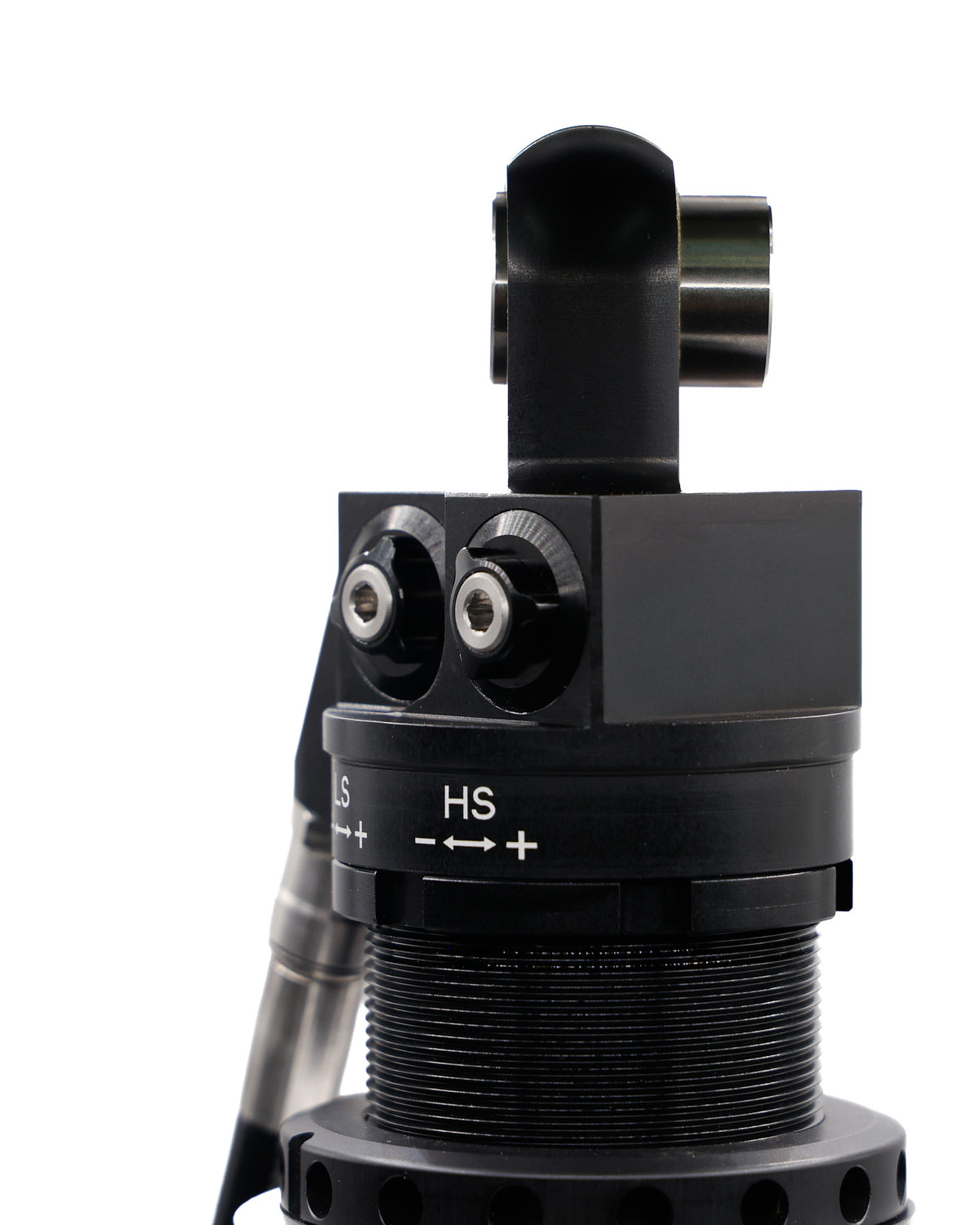

The all-aluminium shock body for the KTM 390 uses our own CAD designed top cap profile to give the necessary clearance between the air-box and frame, and at the same time allows easy access to the MX-style High & Low speed compression adjusters.

The shock body itself utilises a large diameter (46mm) piston assembly for primary damping control, together with a second PDS piston/damping circuit to offer more accurate control and cushioning during the final portion of the suspension stroke.

The internal components are all precision CNC machined from Cro-Mo and Stainless Steel, with the shock featuring a 16mm diameter shaft to improve overall strength & rigidity and ensure consistently smooth operation and durability.

Our KTM 390 Shock features

•  230mm travel - retains the original seat-height and ground clearance.

•  Large diameter (46mm) shock body and piston with PDS valving.

•  16mm diameter shock shaft.

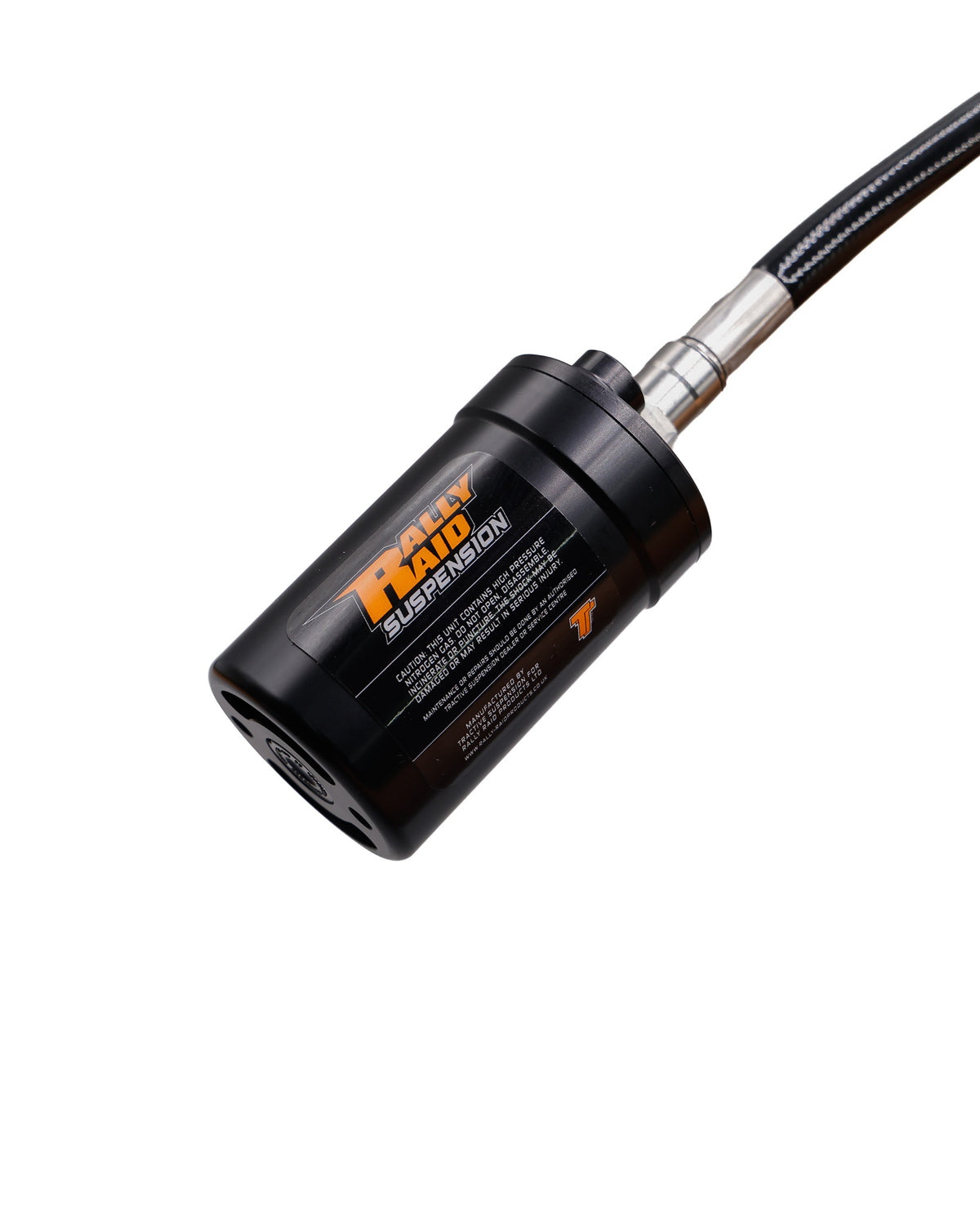

•  Oil reservoir for increased oil capacity and cooling, featuring individual High & Low speed compression damping adjusters (easily accessed using a slotted screwdriver).

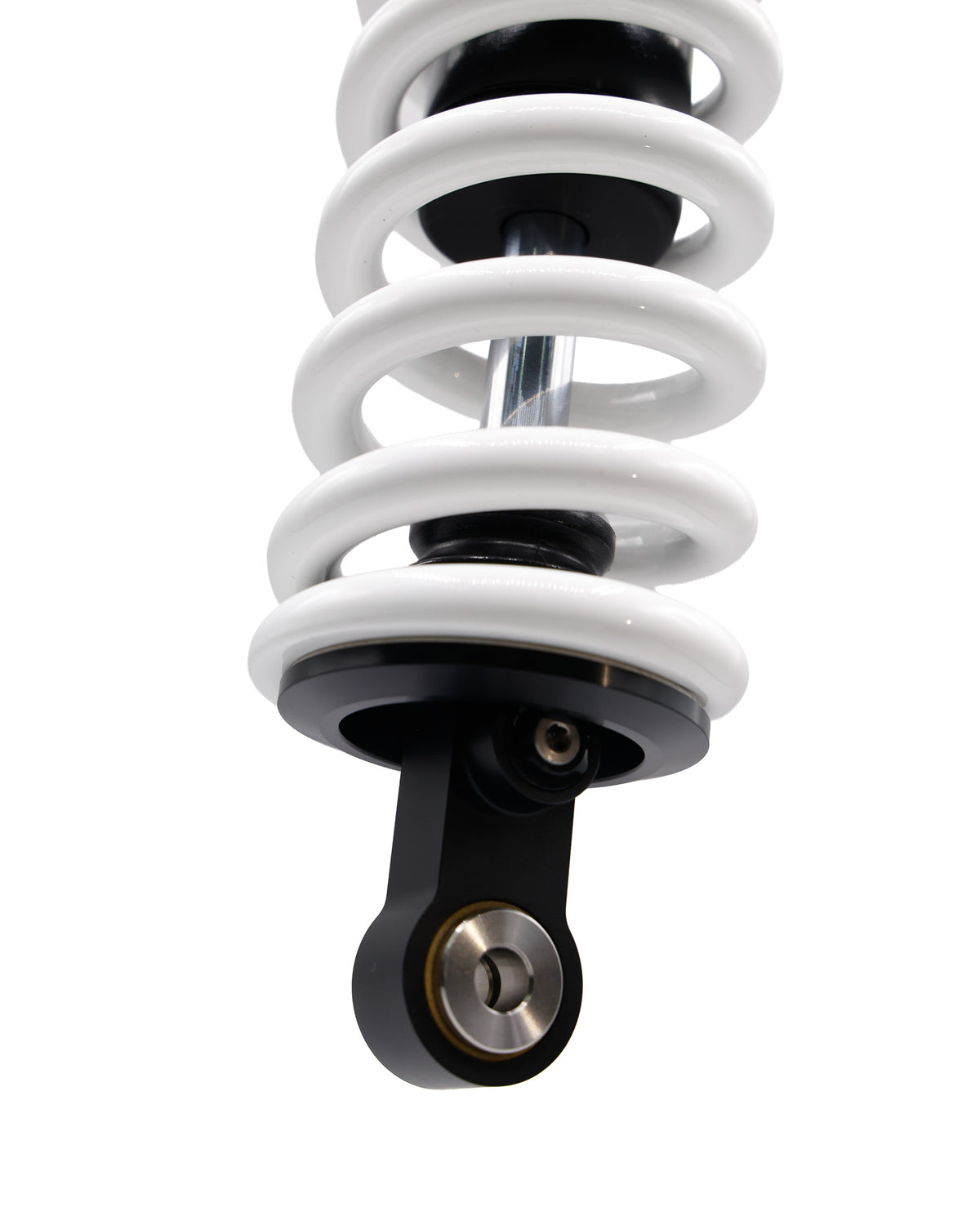

•  Dedicated Rebound damping adjuster easily accessed at the base of the shock.

• Hydraulic Preload Adjuster offers +/-10mm further adjustment for easy setting your initial sag and to quickly compensate for any additional loads.

The Level 1 Extreme shock comes ready assembled with your choice of spring.

All Rally Raid Products / TracTive rear shocks are fully serviceable/rebuildable and come with a 2-year Manufacturer warranty.

A choice of five different spring rates are available (select from the menu above) to more closely match your weight and riding style requirements:


Spring rate guidelines

We suggest you weigh yourself wearing your typical riding apparel (including boots and helmet), and apply that to the following spring rate chart - depending on whether you plan to ride mainly solo, or with an amount of luggage and/or a passenger.

Suggested Spring Rate (based on rider weight)

95 N/mm - Typical Rider weight up to 77.5kg

100 N/mm - Rider weight of 77.5-92.5Kg

110 N/mm - Rider weight of 92.5-107.5Kg

120 N/mm - Rider weight of 107.5-122.5Kg

130 N/mm - Rider weight 122.5Kg-plus


Convert lbs to Kg here

Note. Our LEVEL1 Extreme shock features the same 230mm travel as the OEM shock, specifically so that the ground clearance and seat-height remain the same as standard.

To fully appreciate the benefits our uprated LEVEL 1 Extreme suspension provides when compared the standard OEM specification, we do suggest you combine this shock with our high performance LEVEL 1 [open cartridge] Fork Kit.

Tractive Owners Manual (downloadable PDF)
