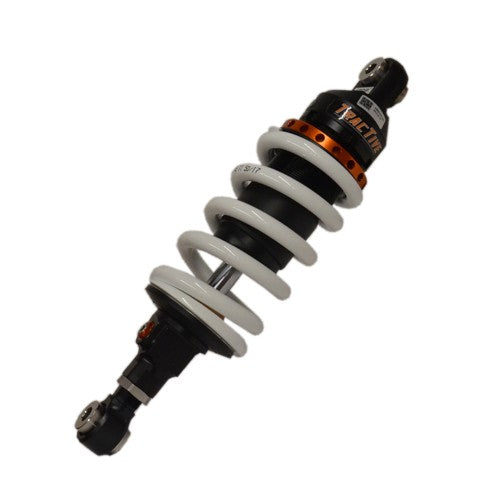

KTM390 2025+ 'LOW' SHOCK (ADJUSTABLE)

KTM 390 Adv R / Enduro R LOW Shock (Adjustable)

IMAGE - Placeholder Image Not Final Product

OVERVIEW:

LOW Rear Shock - LOW SEAT HEIGHT/shorter travel rear suspension upgrade.

High quality aluminium big-bore rear shock, with adjustable damping and a choice of spring rates to suit a wide range of rider/luggage weights and applications.

The adjustable shock body is unique to this LOW model shock, and allows the seat height to be lowered from -45mm to -70mm compared to standard.

NOTE: This is the REAR SHOCK ONLY, to balance the geometry of the bike you will have to slide the forks through the triple clamps by between 10-30mm, depending on shock settings.

TECHNICAL SPEC:

LOW Shock specifications

Shock body features an easily accessible combined damping adjuster (at a fixed ratio of 80% Rebound and 20% Compression), with 24 clicks of adjustment.

Choice of four spring rates at the point of purchase: 110 N/mm, 120 N/mm (standard), 130 N/mm and 140 N/mm.

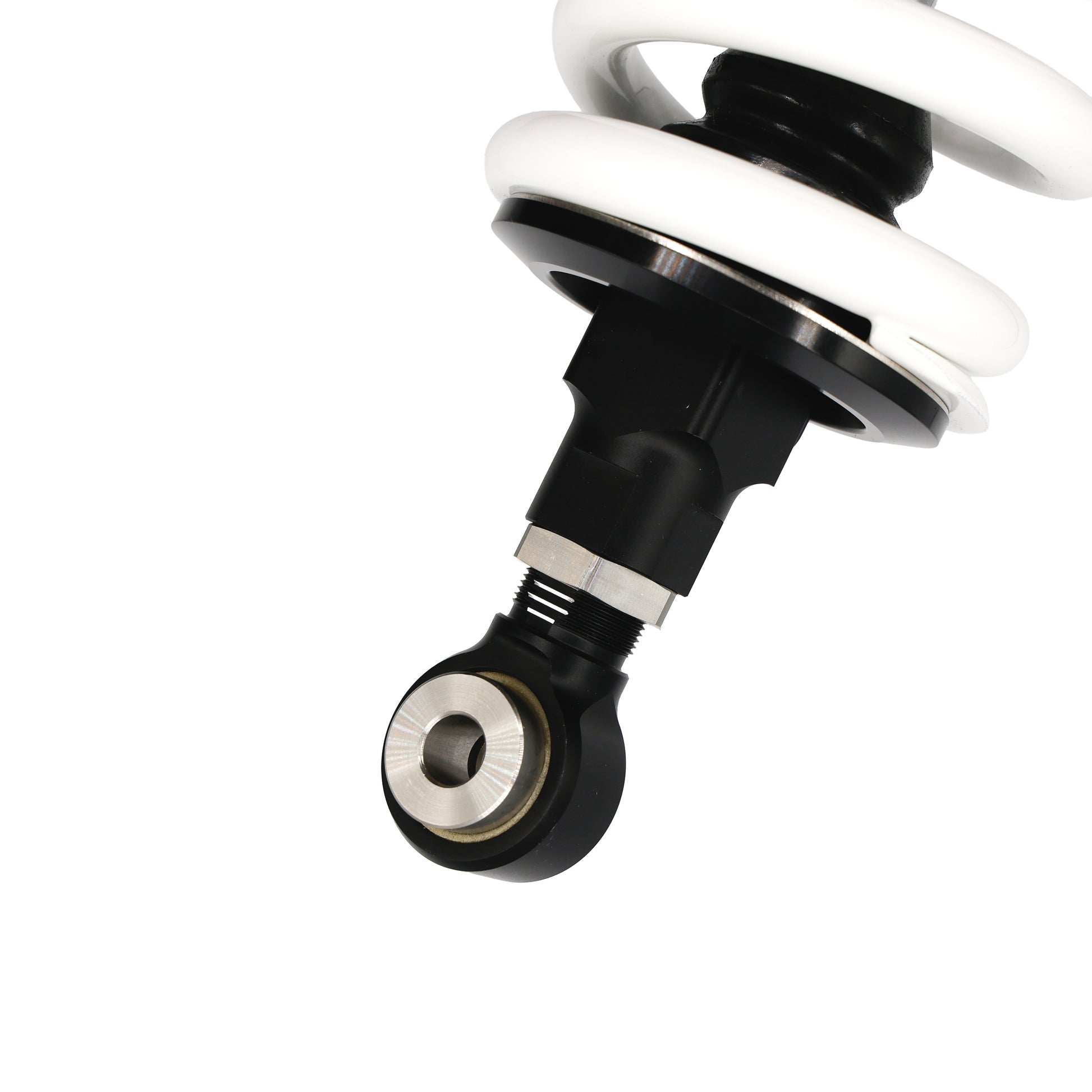

Also fitted is Tractive Suspension's own unique length adjuster, incorporated into the lower shock mounting. This allows the shock length to be reduced by up to 8mm, by undoing the locknut and winding in the lower mount.

This 8mm adjustment at the shock equates to a reduction of between -45mm and -70mm on the standard seat height, compared to the OEM shock - allowing the rider to personalise the ride height to suit conditions. No need for any internal shock modifications, or after-market parts to reduce ride height.

All Rally Raid Products / TracTive rear shocks are fully serviceable/rebuildable and come with a 2-year Manufacturer warranty.

SPRING RATES:

Spring Rate guidelines:

Convert lbs to KG here

Rider weight (inc. clothing and light luggage up to 15Kg) = Total up to 85Kgs     110 N/mm (Softer Spring)
Rider weight (inc. clothing and light luggage up to 15Kg) = Total 85-105Kgs     120 N/mm (Standard Spring)
Rider weight (inc. clothing and light luggage up to 15Kg) = Total 105-120Kgs     130 N/mm (Harder Spring)


Above 120kgs total rider & luggage weight select 140Nm spring, this is the maximum weight spring offered.

IMPORTANT INFORMATION:

IT IS NOT POSSIBLE TO FIT THE REMOTE HYDRAULIC PRELOAD ADJUSTER TO THIS LOW VERSION OF THE TRACTIVE SHOCK.
