RALLY RAID SUSPENSION

CB500X LEVEL 1 SHOCK (2019-2021)

CB500X LEVEL 1 SHOCK (2019-2021)

SKU: S-CBX-1B-100

Regular price £711.90 GBP
£593.25 GBP excl VAT
Regular price
£0.00 excl VAT
Sale price £711.90 GBP
£593.25 GBP excl VAT
Sale Sold out
Shipping calculated at checkout.
SPRING RATE (N/mm)
HYDRAULIC PRELOAD ADJUSTER

Need help or advice before ordering ? Check our FAQ or drop us a message below.

View full details
  • OVERVIEW
  • TECHNICAL SPEC
  • SPRING RATES
  • IMPORTANT INFO
  • SUPPORT & FITTING

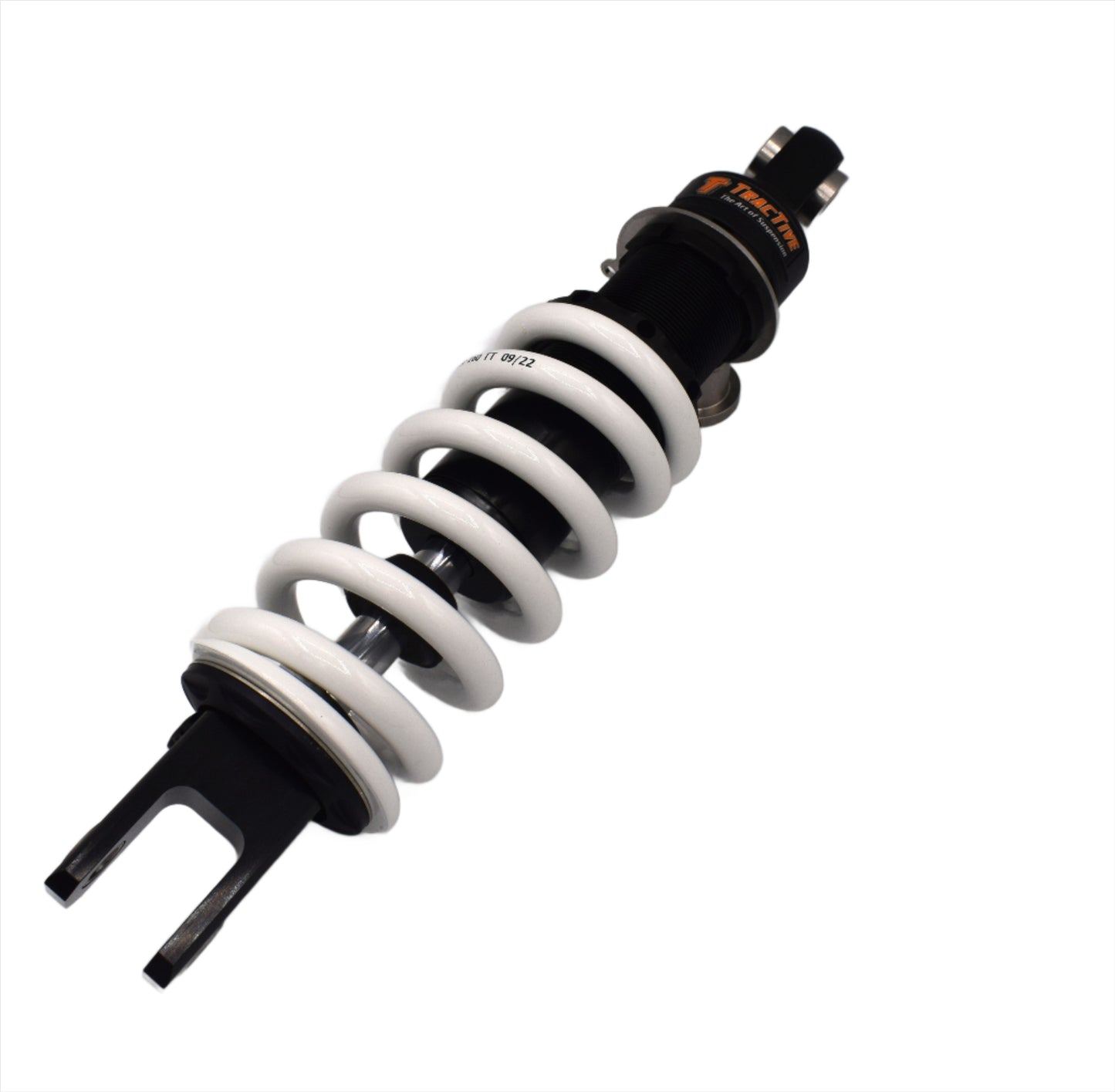

CB500X LEVEL 1 Shock - STANDARD TRAVEL/SEAT HEIGHT rear suspension upgrade (suitable for CB500X 2019-2021 model years)



Developed in conjunction with our suspension partners TracTive Suspension in the Netherlands, this high-quality aluminium replacement shock features adjustable damping and a choice of spring rates to suit a wide range of rider/luggage weights and applications.



Shock body features an easily accessible combined damping adjuster (at a fixed ratio of 80% Rebound and 20% Compression), with 24 clicks of adjustment.



Choice of 3 spring rates at the point of purchase: 100 N/mm, 110 N/mm (standard), 120 N/mm and 130 N/mm.

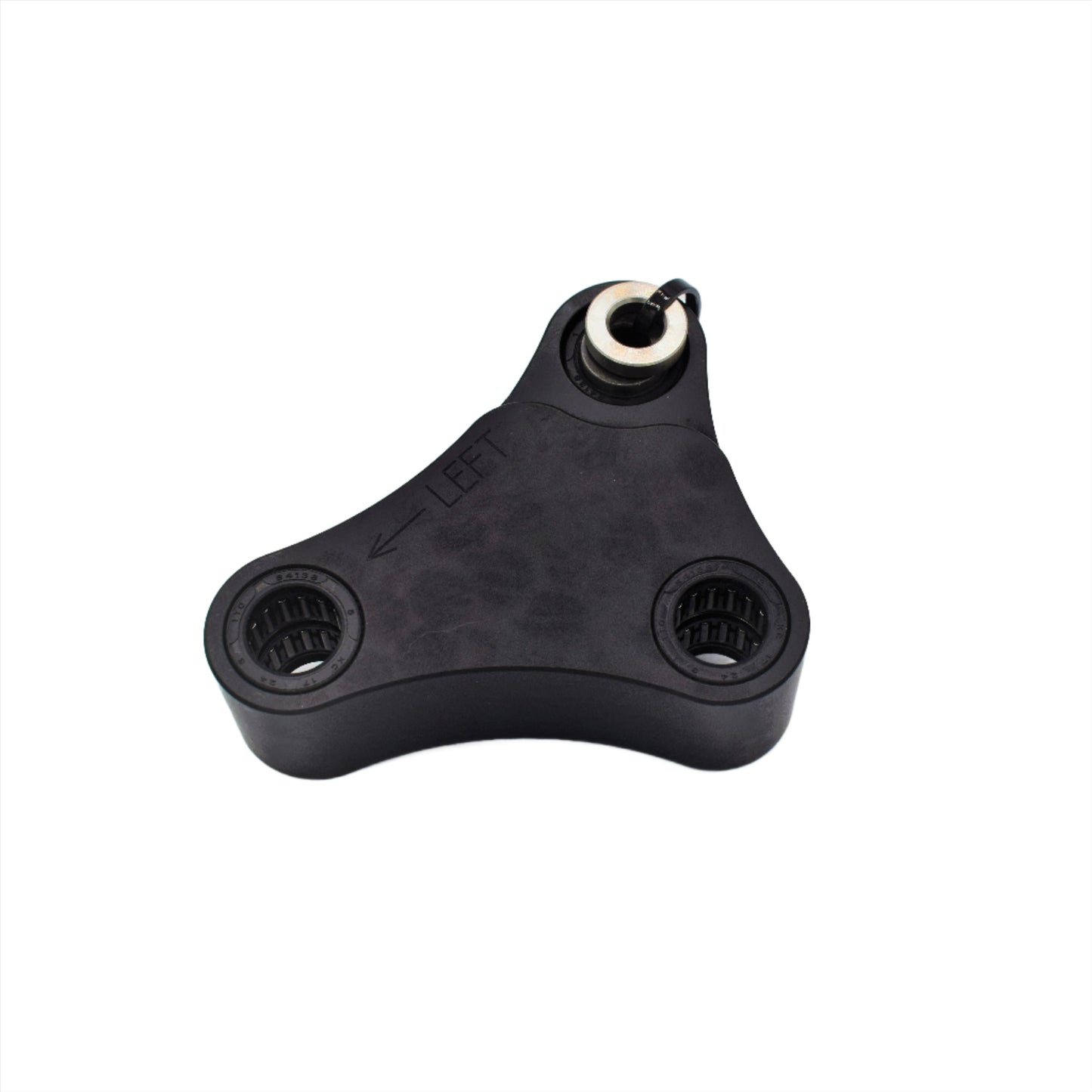

Supplied with our own cnc machined billet linkage, complete with needle roller bearings fitted, and hardened shock mounting bush.



Along with traditional manual preload adjustment, our standard LEVEL 1 shock can also be upgraded with a dedicated Remote Hydraulic Preload Adjuster, allowing quick and easy adjustment of the spring preload a further +/-10mm to compensate for additional loads such as luggage or a passenger.





Note. This is the REAR SHOCK ONLY, if you require a complete standard travel front & rear upgrade, please also add the LEVEL 1 Fork Kit (2019-2021) to your cart.





OPTIONAL HYDRAULIC PRELOAD ADJUSTER (for CB500X LEVEL 1 & LEVEL 2 rear shocks).



Our Hydraulic Preload Adjuster is designed for riders that want quick, easy adjustment of spring preload. It allows the preload to be adjusted over a range of +/-10mm with the simple turning of a knob on the Remote handle, which is located conveniently alongside the left hand of the engine, just below the fuel tank. Approximately 20 turns will achieve the full movement of the preload piston travel, and the knob has a 'click' every half-turn to aid setting.


Quick tool-less preload adjustment is much preferred by those riders who wish to alter the preload/rear sag setting on a regular basis - typically when carrying extra luggage or a passenger, or when going from street to off-road travelling.



Supplied ready assembled on your shock together with the correct length/rate spring selected at the point of purchase.

CB500X LEVEL 1 Shock specifications



Shock body features an easily accessible combined damping adjuster (at a fixed ratio of 80% Rebound and 20% Compression), with 24 clicks of adjustment.



Choice of 3 spring rates at the point of purchase: 100 N/mm, 110 N/mm (standard), and 120 N/mm.



Our standard LEVEL 1 shock can also be upgraded with a dedicated Hydraulic Preload Adjuster, allowing quick and easy adjustment of the spring preload +/-10mm to compensate for additional loads such as luggage or a passenger.



The aluminium-bodied TracTive Shock gives a weight saving of over 1.5Kg compared to OEM shock.



All Rally Raid Products / TracTive rear shocks are fully serviceable/rebuildable and come with a 2-year Manufacturer warranty.



CB500X Shock Spring Rate guidelines:


Convert lbs to KG here



Rider weight (inc. clothing and light luggage up to 15Kg) = Total up to 85Kgs 100 N/mm (Softer Spring)
Rider weight (inc. clothing and light luggage up to 15Kg) = Total 85-105Kgs 110 N/mm (Standard Spring)
Rider weight (inc. clothing and light luggage up to 15Kg) = Total 105-120Kgs 120 N/mm (Harder Spring)





Note. Our LEVEL 1 suspension retains the original travel length and seat-height/ground clearance of the standard machine.



For our longer travel option (with the corresponding increase in ground clearance and seat height), please select the LEVEL 2 Suspension Kit option instead.



Shock fitting as per LEVEL 2 Shock Fitting Instructions, other than LEVEL 1 shock does not include the remote reservoir.
