RALLY RAID SUSPENSION

YAMAHA T7 RALLY FORK KIT (CLOSED-CARTRIDGE +25mm TRAVEL)

YAMAHA T7 RALLY FORK KIT (CLOSED-CARTRIDGE +25mm TRAVEL)

SKU: SY-04-56

Regular price £1,258.67 GBP
£1,048.89 GBP excl VAT
Regular price
£0.00 excl VAT
Sale price £1,258.67 GBP
£1,048.89 GBP excl VAT
Sale Sold out
Shipping calculated at checkout.
SPRING RATE (N/mm)

Need help or advice before ordering ? Check our FAQ or drop us a message below.

PLEASE READ ALL INFORMATION CAREFULLY BEFORE PLACING AN ORDER

View full details
  • OVERVIEW
  • TECHNICAL SPEC
  • SPRING RATES
  • IMPORTANT INFO
  • SUPPORT & FITTING

Our long-travel RALLY Closed Cartridge Fork Kit has been developed specifically for those riders wishing to take their Yamaha T7 Tenere on extreme terrain, tough trails & cross-country competition events, and has already been proven in long-distance desert Rally Racing conditions.



We consider our RALLY specification the ultimate upgrade for owners who wish to fully exploit the off-road potential of the Yamaha Tenere 700 platform.



Our unique Closed Cartridge system was designed and developed in conjunction with TracTive Suspension in the Netherlands, and offers a significant improvement in all-round performance compared to the OEM components.



Offering 225mm fork travel (+25mm more than the OEM specification) the dedicated individual Compression and Rebound Closed Cartridge damping system and heavy duty springs offer a dramatic increase in off-road and all-terrain performance, while remaining composed and controlled for riding on paved highways too of course.



T7 RALLY Fork Kit specifications



Compared to the OEM and our Adventure Open Cartridge damping system, a Closed Cartridge features a dedicated oil & nitrogen charged damper unit enclosed in it's own housing - designed to provide constant and temperature-independent absorption, preventing foaming and cavitation, to achieve consistent damping during more extreme and prolonged riding conditions.



In addition, in this application the Compression and Rebound damping circuits are completely separated (in a dedicated cartridge, one in each leg) so that the respective valving can be tuned specifically to each action - allowing maximum control over both the Compression and Rebound damping of the front forks.



Note. Our RALLY specification also includes an extra +25mm travel compared to the OEM components and our ADVENTURE/EXTREME fork kit options - with a corresponding increase in ground clearance and seat height.



 features include:

• Fully adjustable for fork spring preload, compression and rebound damping control.

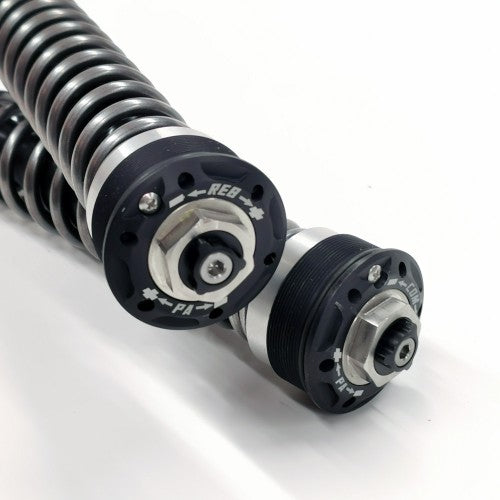

• Our replacement fork caps feature up to +10mm of spring preload adjustment, together with individual adjusters at the top of the forks for both Compression and Rebound damping control.

• 35mm piston for improved oil flow, damping performance, feel and response.


• Supplied with linear fork springs in a choice of rates to match the rider weight.

• PDS check-valve circuit to enhance the damping progression towards the final portion of the stoke.

• Hard anodised CNC machined aluminium (external) and stainless steel (internal) component construction for durability.



Utilising a big-bore 35mm diameter piston and cartridge (rather than the OEM 20mm diameter), this allows for much larger diameter shims, giving 270% more surface area, and a much more progressive and controlled feeling due to increased oil flow.



Dedicated Compression and Rebound cartridges (one in each leg) allows for more effective and precise suspension adjustment, and results in a more sensitive and controlled fork action overall.

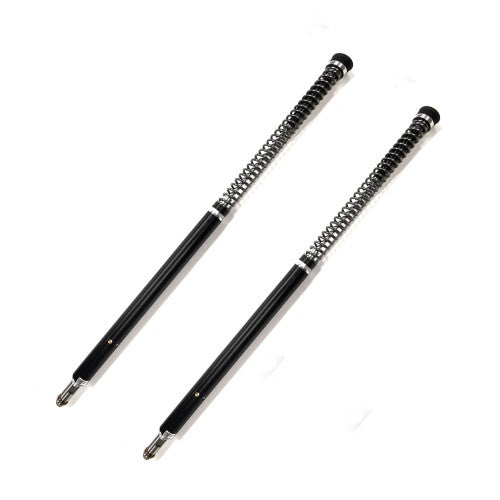

Supplied with a pair of linear-wound springs in a choice of three different rates, coupled with CNC machined plastic Spring Guides (incorporating our own PDS/check-valve design) and our high-strength hard-anodised aluminium 35mm cartridge/piston tubes. Complete with our own design billet aluminium adjustable preload fork caps.

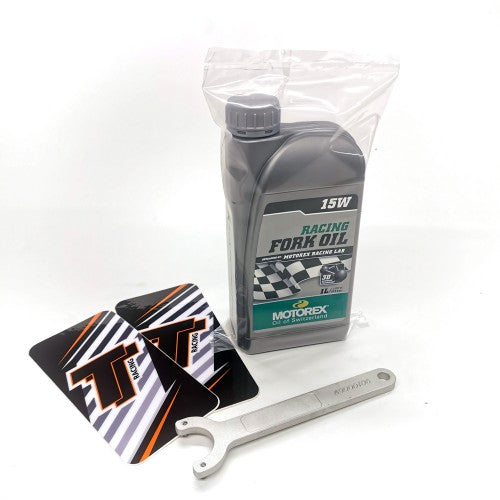

Our Closed Cartridge Fork Kit comes ready to fit* with pre-filled and gas-charged cartridges, and includes the dedicated tools for fitting the fork caps and adjusting the damping and spring preload.


*Please see our fitting instructions for the list of tools required to install our T7 Fork Cartridge Kits.



Note. our Closed Cartridge kits also require 100ml of 15w SAE oil to be added to each leg for general lubrication.

Our linear-wound heavy-duty high performance T7 springs are available in a choice of 3 rates (based on rider weight) - selected from the menu above.



Up to 75Kg rider - 5.6 N/mm

75-95Kg rider - 6.0 N/mm

above 95Kg rider - 6.4 N/mm

NOTE: THIS KIT WILL INCREASE THE GROUND CLEARANCE AND SEAT HEIGHT BY 25MM (1") OVER STANDARD.



Note. Our Closed Cartridge kits also require 100ml of 15w SAE oil to be added to each leg for general lubrication.



Note. The kit does not include replacement Fork Seals - our recommended SKF upgrade seals are available separately if required.



Note. Our T7 RALLY Fork Kit is designed to be a straightforward DIY fit, but does require some basic knowledge of fork disassembly and suspension work. If you do not feel able/or have the facilities to do this at home, we recommend you contact a suspension specialist to perform the work for you.



Special Note. If you do not have access to a battery impact driver (or air gun), to remove the compression adjuster in the bottom of the fork leg, then we recommend purchasing our dedicated Fork Cartridge Tool to simplify the initial removal of the OEM fork cartridge.

T7 Closed-Cartridge Fork Kit Fitting Instructions (downloadable PDF)
