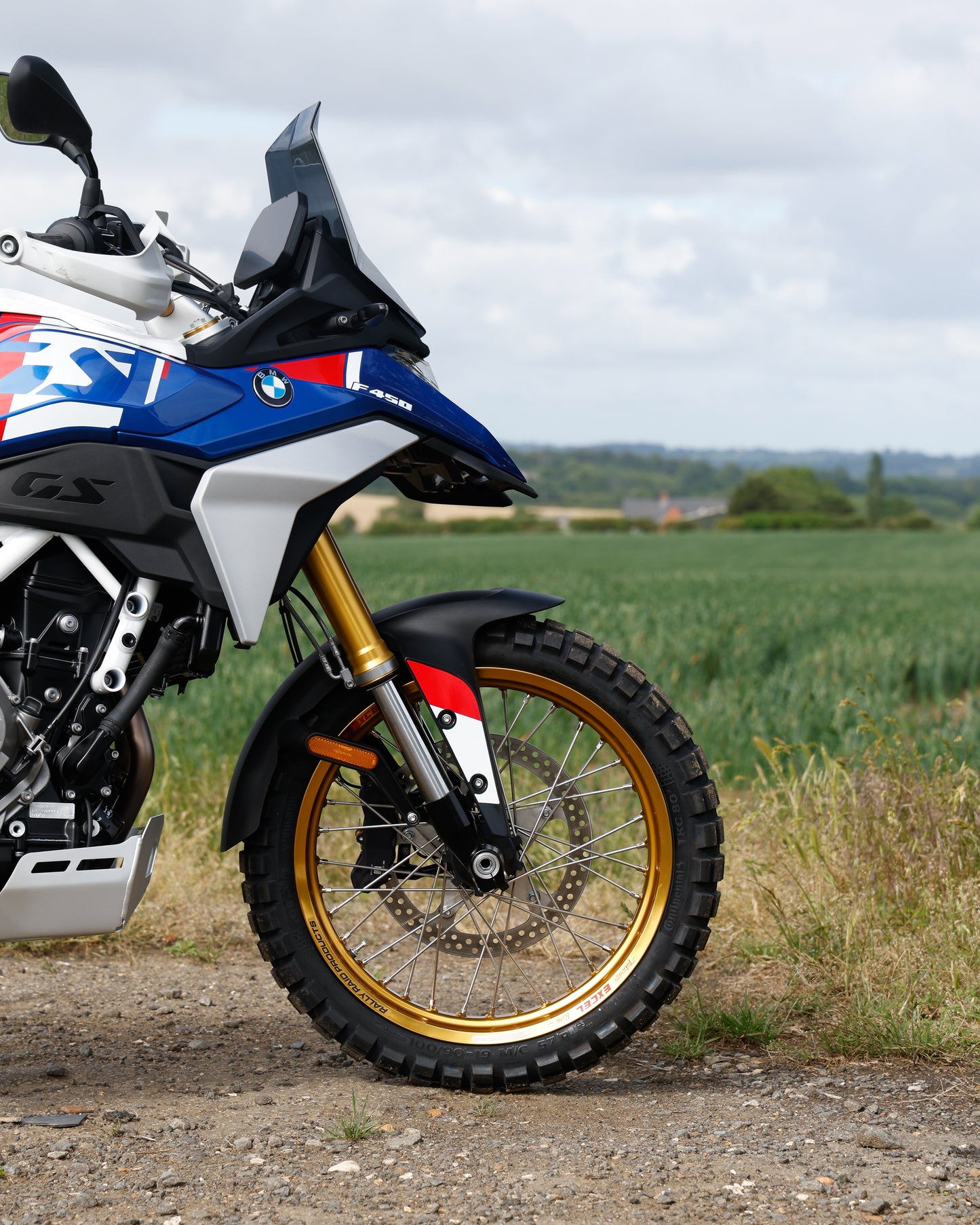

TUBELESS FRONT & REAR SPOKED WHEEL KIT - FEATURING GOLD ANODISED EXCEL RIMS

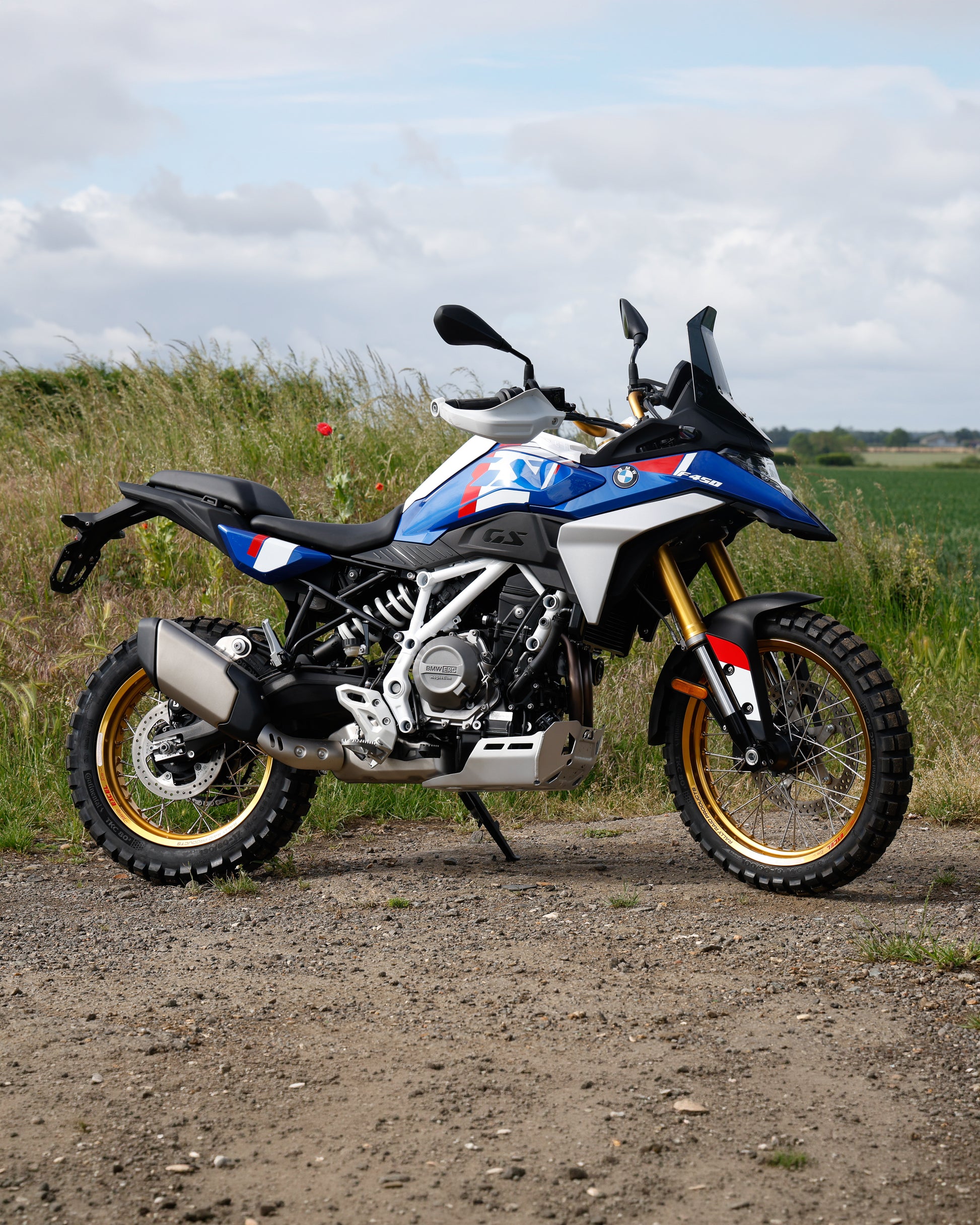

19" front and 17" rear spoked wheel kit to fit BWM F450GS-2026 on.

With the introduction of our new gold-anodised EXCEL TUBELESS spoked wheels, we are now able to offer the same convenience with regard to puncture repair as you have with your standard cast aluminium wheels, but in a far more robust and repairable/rebuildable spoked wheel combination.

Built around the legendary Excel Takasago aluminium rims together with our own in-house design and manufactured hubs which accept all the OEM cush-drive, brake disc and ABS hardware, these premium-quality wheels will enhance both the all-terrain performance and the style of your BMW F450GS

Each custom-built wheel kit consists of:

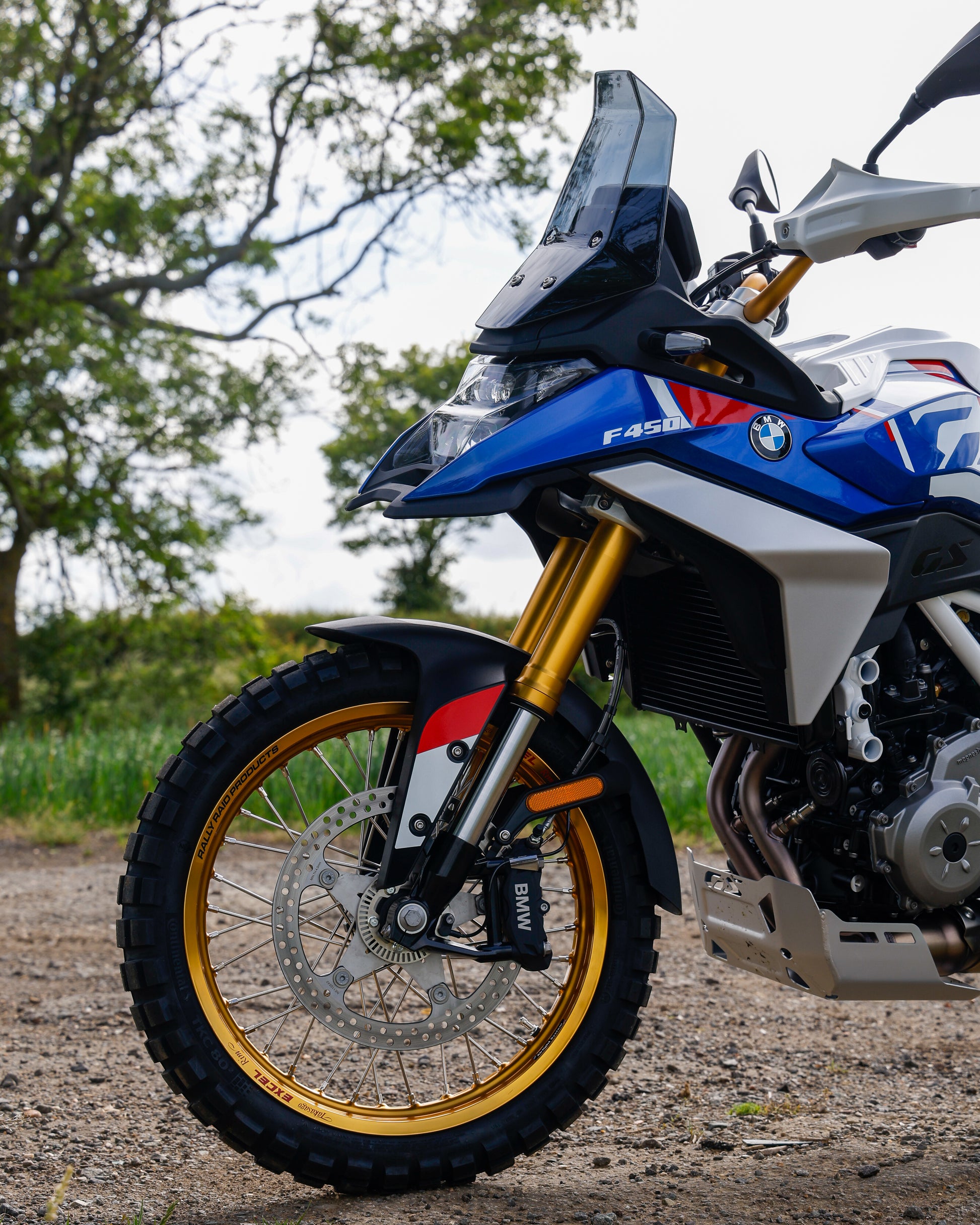

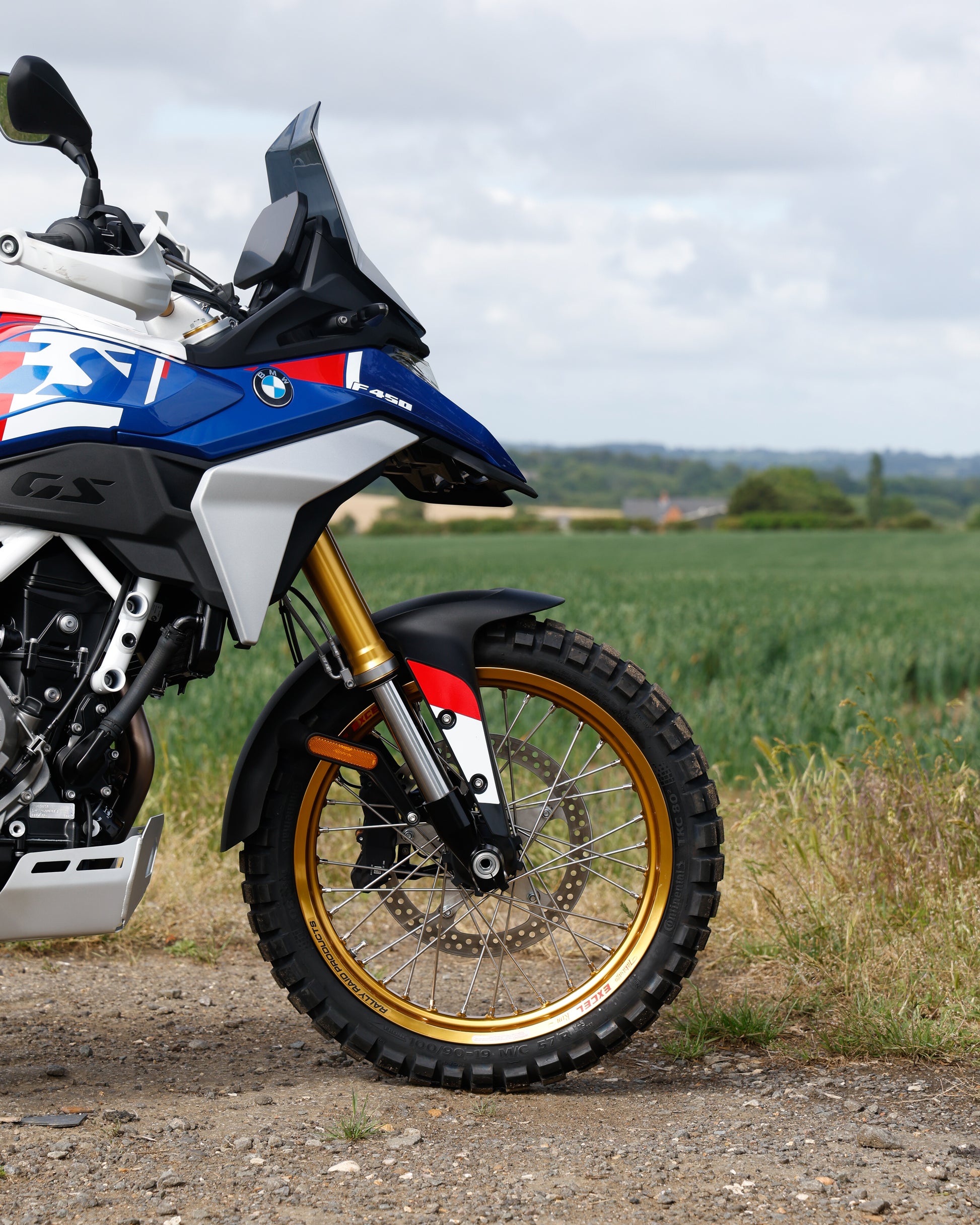

Front wheel: 19” diameter x 2.50 wide, 36 spoke, Excel Takasago aluminium rim, laced with heavy-duty stainless steel spokes and nickel-plated brass nipples onto our own CNC machined billet aluminium front hub.

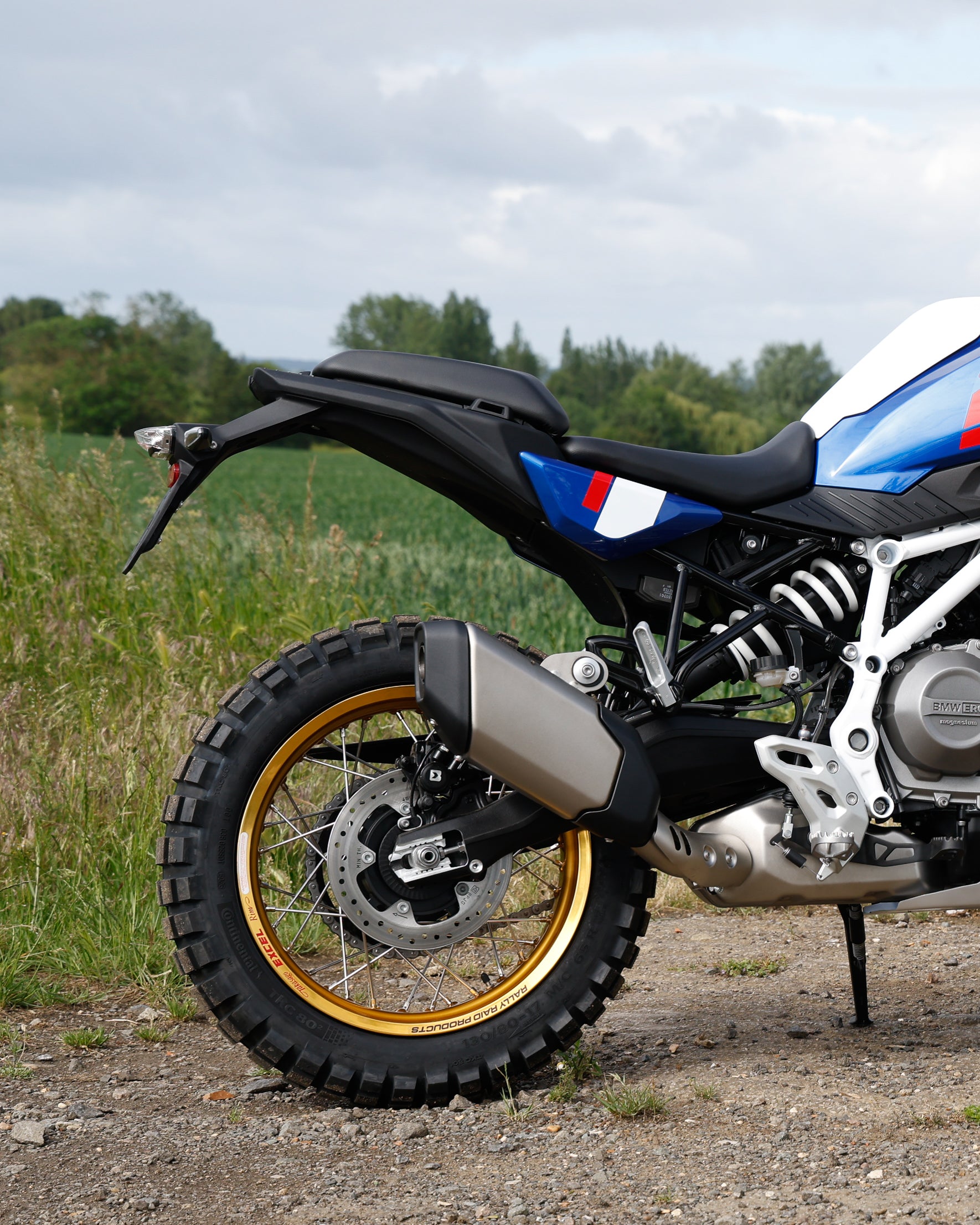

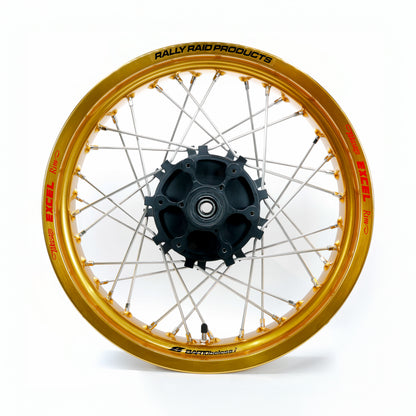

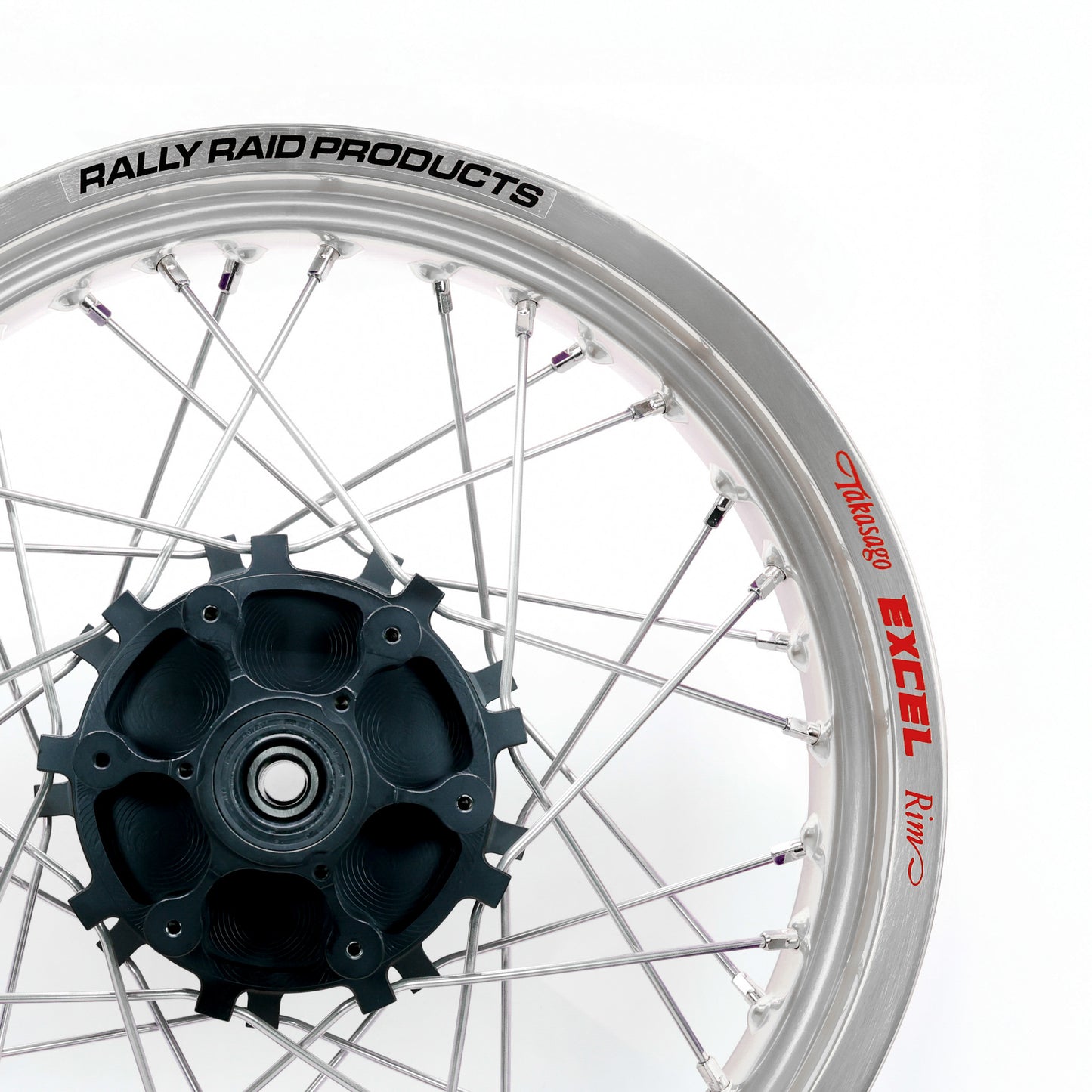

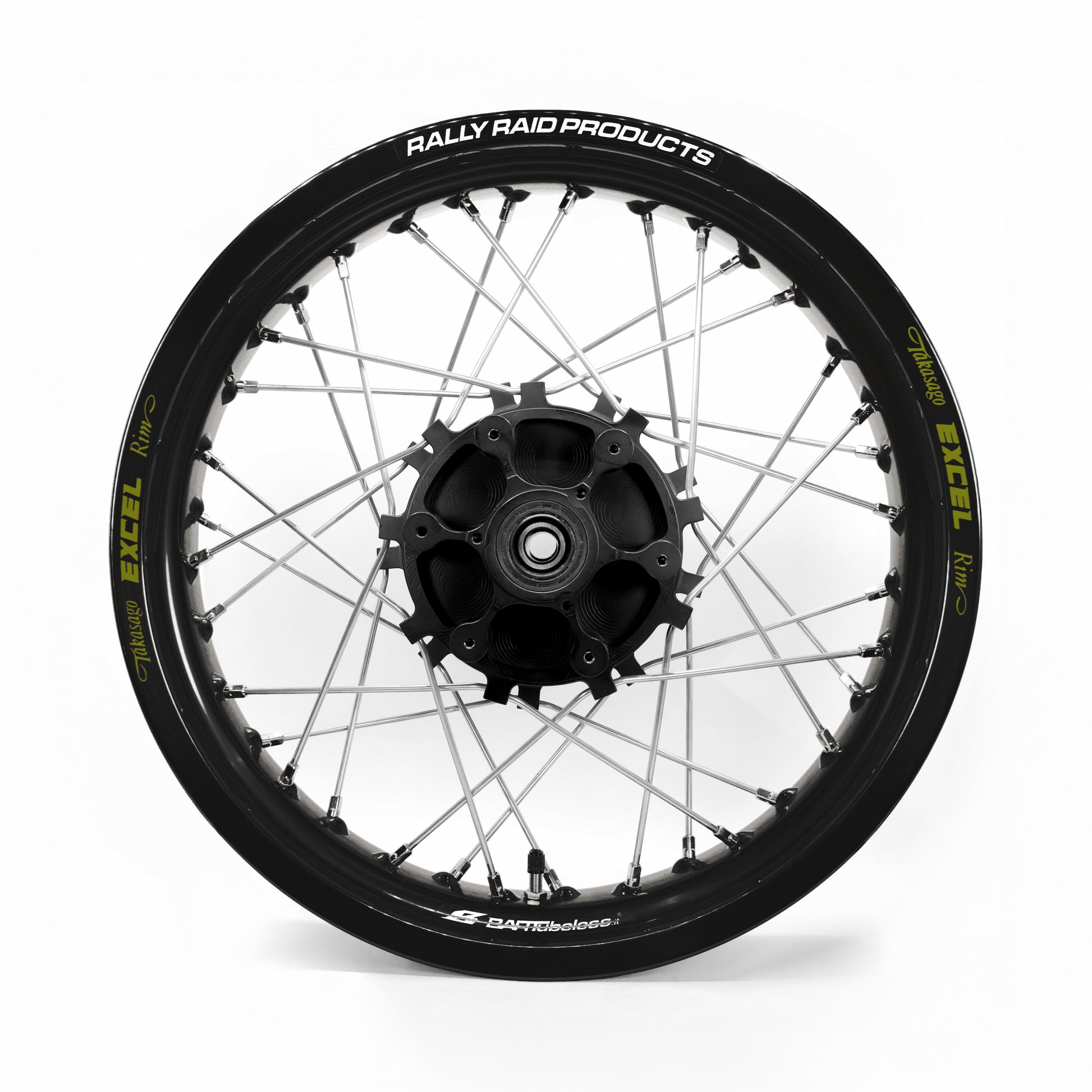

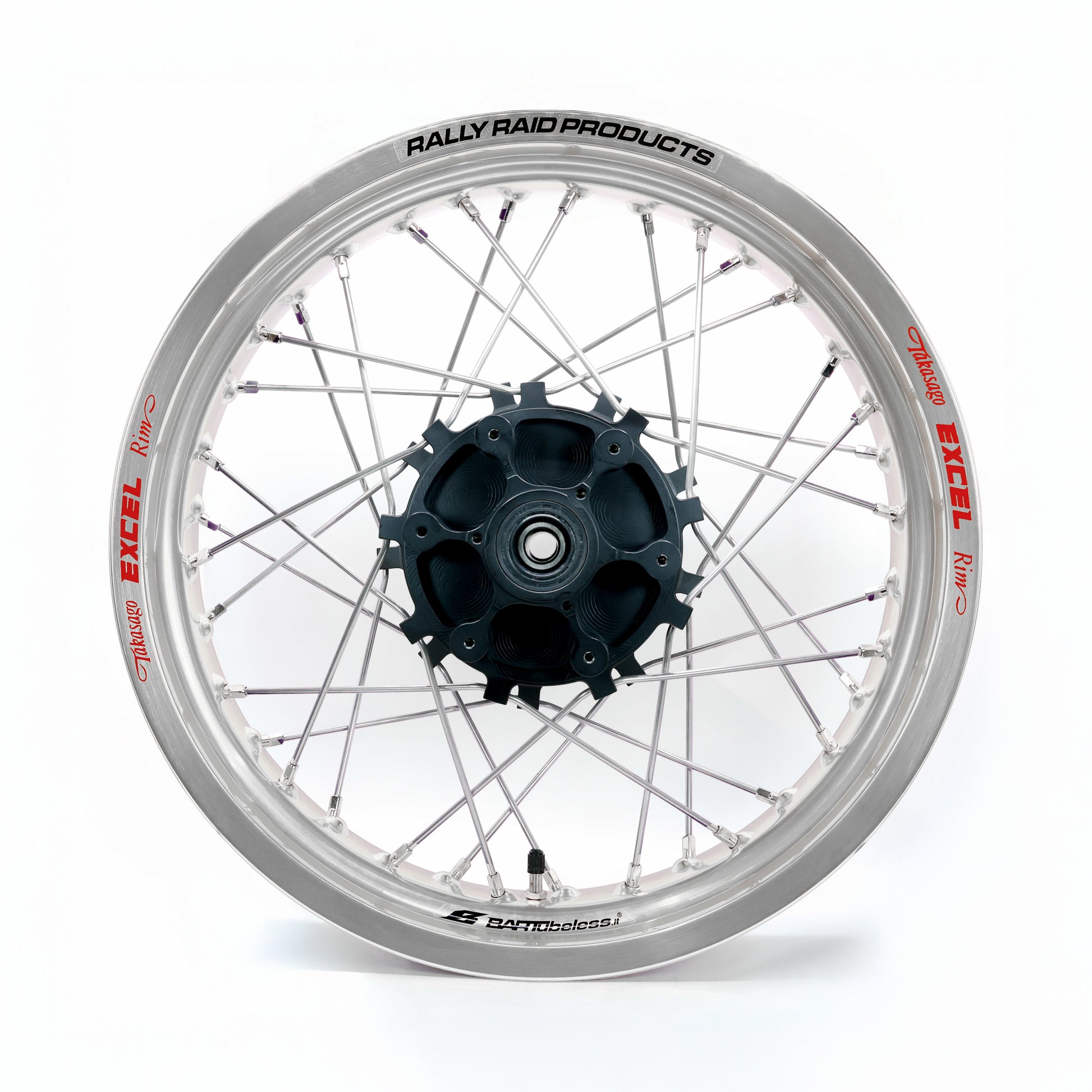

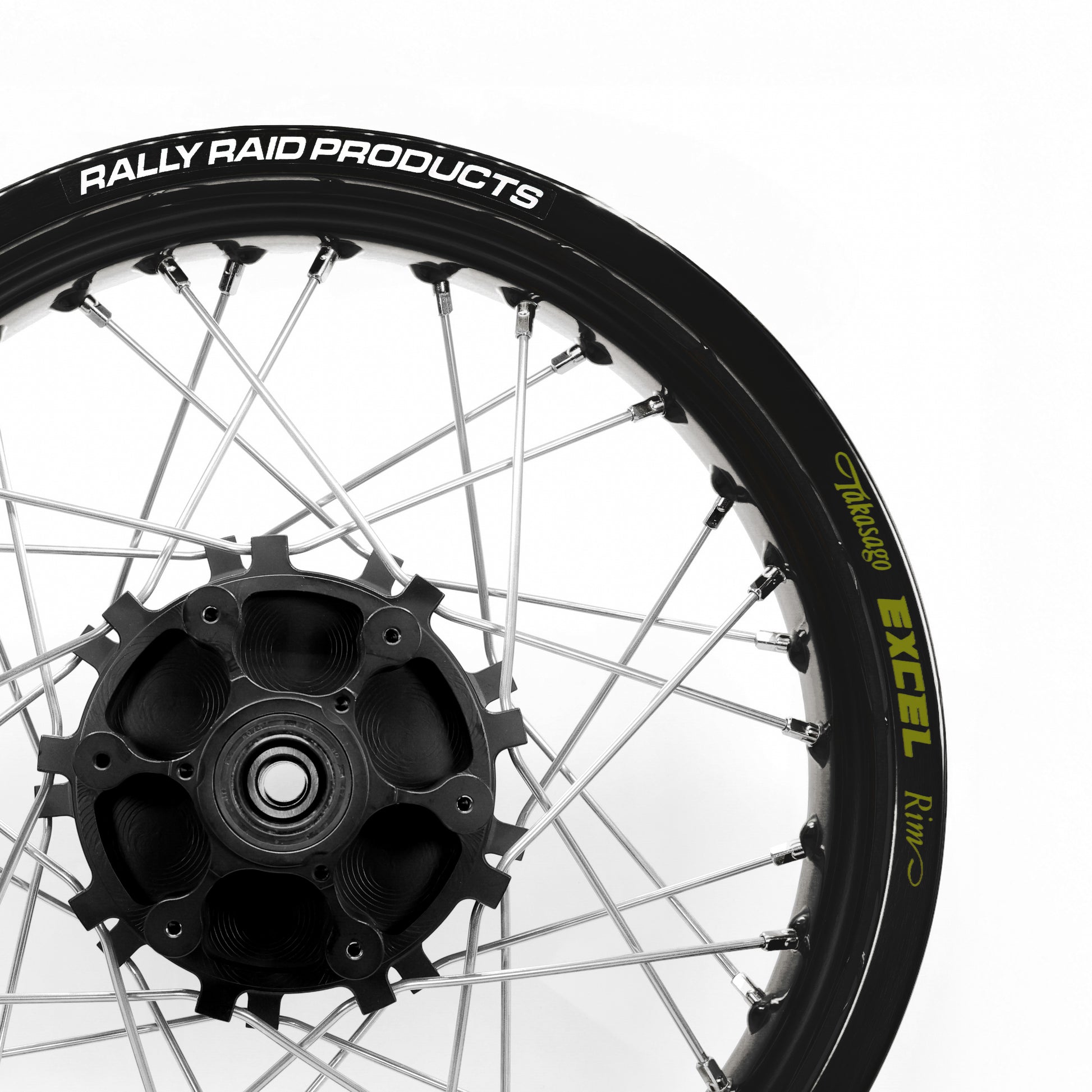

Rear wheel: 17” diameter x 3.50 wide, 36 spoke, Excel Takasago aluminium rim, laced with heavy-duty stainless steel spokes and nickel-plated brass nipples onto our own CNC machined billet aluminium rear hub - specifically designed to accept the OEM cush-drive assembly, and brake disc/ABS sensor components.

Information from Excel

USE ONLY MILD PH NEUTRAL SOAP for cleaning to prevent from chemical damaging!
After cleaning, please immediately rinse with clean water.
Use of acidic or alkaline cleaner/chemicals, solvents, and so on are PROHIBITED.
These may damage the anodizing layer causing corrosion, discoloration, stain, dullness, etc.
Damaged anodizing layer cannot be repaired, nor covered by warranty in case of inappropriate treatment.

Both front and rear hubs are manufactured from 6082T6 billet aluminium alloy, and cerakoated black for a durable finish.

Gold anodised Excel Takasago rims are MT Tubeless bead specific, and sealed using the vulcanising process, which is warrantied for 2-years from the manufacturer.

Another benefit of the vulcanised band process, is that in the event of a puncture that could not be repaired by normal tubeless repair, then the tubeless valve can be removed from the rim, then a normal inner tube fitted in order to carry on riding, until a more permanent repair can be completed.

Heavy-duty "Bulldog" stainless steel spokes have 60% greater tensile strength than typicial OEM specification mild-steel spokes, and benefit from inherent corrosion resistance.

Our spoked wheels are supplied ready to fit with new bearings and seals, and accept all the OEM hardware to mount the rear sprocket cush-drive assembly, brake disc rotors and ABS sensor components. All you need is your own choice of tyres.

Our rim sizes (19" x 2.50 front and 17" x 3.50 rear) were chosen specifically to enhance the off-road performance and all-round ability of the F450GS, and allow a wide range of all-terrain 50/50 style tread pattern tyres to be fitted from any number of manufacturers.

For the BMW F450GS used in mixed terrain on and off-road riding scenarios, we would suggest you fit a 110/80 x 19" front size and 140/80 x 17" rear size tyre - and our recommended brand/model would be the Continental TKC80 Gen 2, Anlas Capra-X , Kenda Big Blocks or similar in these sizes, which over the years and during many thousands of miles of mixed terrain riding, we've found work particularly well both on and off-road on the F450GS.

Benefits of our wheel kit

• Rear hub is designed to work with the OEM cush drive and rubbers.
• Our rear hub/rim is 36 spoke pattern, much stronger and resistant to flex.
• Hubs supplied with bearings & seals.
• Both front & rear hubs designed to work with OEM discs, rear ABS ring and OEM screws.
• High-tensile "Bulldog" spokes are 33% larger cross section, and consequently 60% stronger tensile strength than the OEM plated mild steel spokes, plus they are corrosion-proof.
• Nipples are nickel-plated brass, again, corrosion-proof, maintenance free.

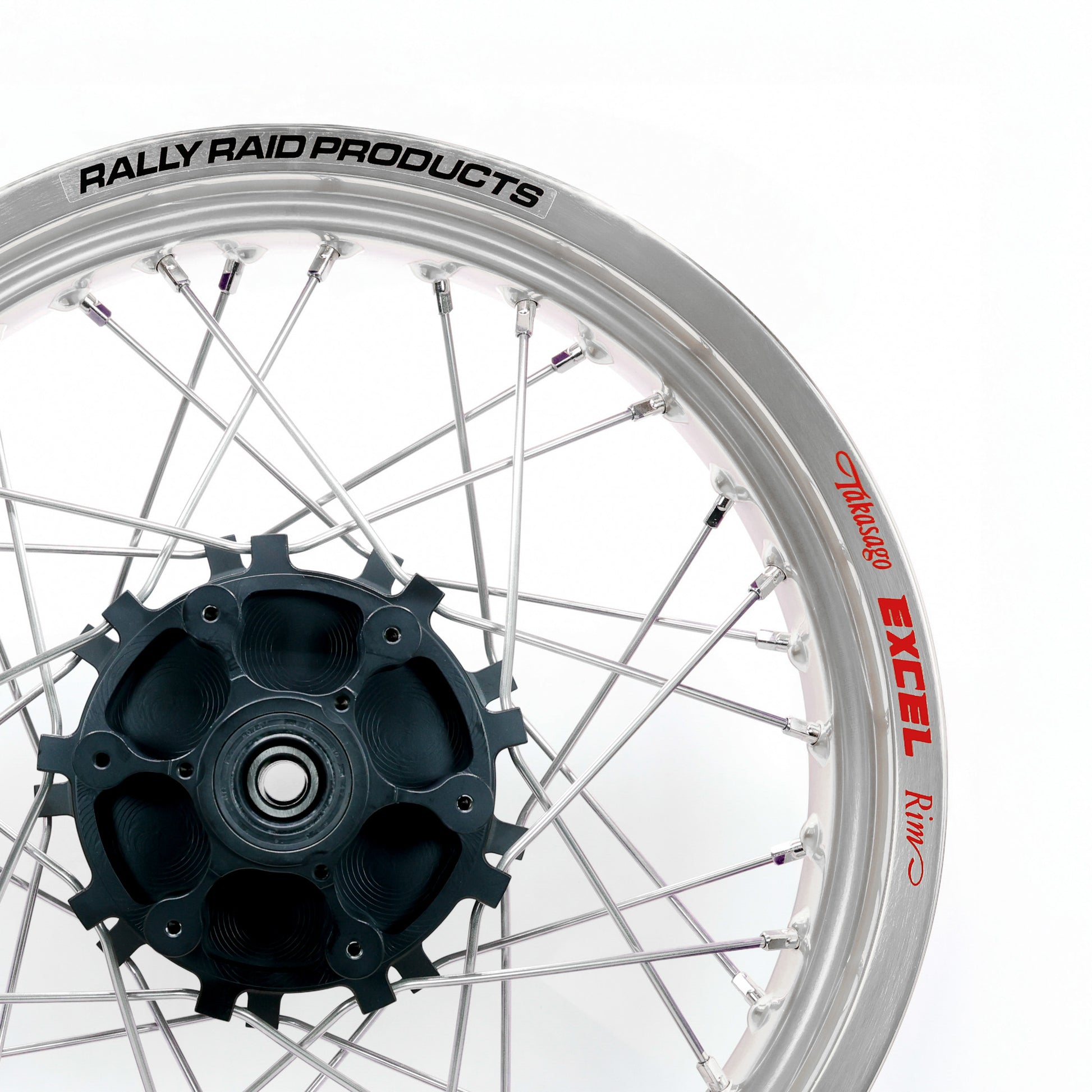

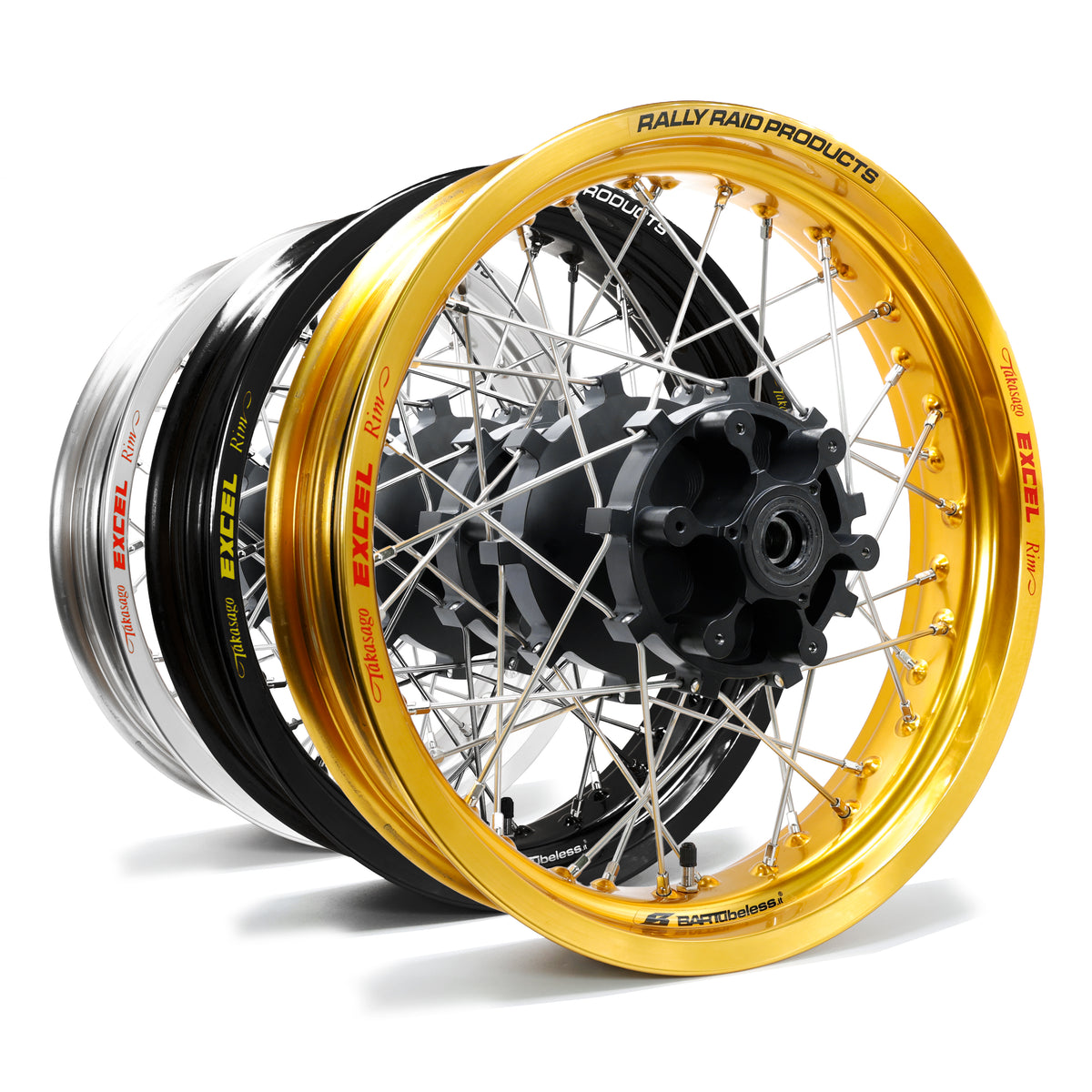

Both rims are high-grade aluminium alloy EXCEL TAKASAGO, MT-type (tubeless specific)

The rim sizes are 19"x 2.50 front and 17"x 3.50 rear, 36 spoke hole pattern.

IT IS POSSIBLE TO FIT THE OEM REAR TYRE 130/80-17 AS OUR REAR RIM IS SLIGHTLY NARROWER THAN OEM CAST WHEEL RIM. OUR RECOMMENDATION IS A 140/80-17 REAR TYRE, OR ALTERNATIVELY THE POPULAR 150/70-17 PROFILE SIZE - TYPICALLY AVAILABLE FROM ALL MAJOR TYRE MANUFACTURERS.

THE OEM FRONT TYRE 100/90-19 IS SUITABLE FOR OUR SPOKED FRONT RIM, ALONG WITH OTHER POPULAR SIZES

DO NOT USE ACID, OR ALKALI-BASED WHEEL CLEANERS TO REMOVE DIRT AND BRAKE DUST, AS THESE CAN CORRODE AND REMOVE THE POWDER-COATING AND TARNISH THE STAINLESS-STEEL AND NICKEL-PLATED BRASS NIPPLES. USE A PH-NEUTRAL CLEANER, OR SOAP AND WATER.

FITTING INSTRUCTIONS

Information from Excel

USE ONLY MILD PH NEUTRAL SOAP for cleaning to prevent from chemical damaging!
After cleaning, please immediately rinse with clean water.
Use of acidic or alkaline cleaner/chemicals, solvents, and so on are PROHIBITED.
These may damage the anodizing layer causing corrosion, discoloration, stain, dullness, etc.
Damaged anodizing layer cannot be repaired, nor covered by warranty in case of inappropriate treatment.

Pre-Order Requirement: a £500 (GBP) deposit is required to secure your place in this limited production run. Orders are fulfilled in the sequence they are placed.

Payment: Your £500 (GBP) deposit is charged at the point of pre-order and will be converted to your local currency at the exchange rate applicable at the time of purchase. The remaining balance will be due prior to dispatch and you will receive a payment request when your order is ready to ship.

Early Cancellation: Your deposit includes a non-refundable element. If you cancel your pre-order within 4 months of your purchase date, 50% of your deposit (£250 GBP) will be retained.

Late Cancellation: If your order has not been fulfilled within 4 months of your purchase date, you may cancel without penalty and receive a full deposit refund.

Returns: Our standard returns policy applies once your order has been dispatched.
